Welcome to visit

Automatic 2 Color Balloons Screen Printing Machine

US$11,800.00
1-5 set
US$11,500.00
6-9 set
US$10,800.00
10+ set

Basic Info.

Model NO.
GW-BL-A
Type
Automatic Screen Printing Machine
Style
Screen-process Printing Press
Structure
Rotary Printing Press
Color & Page
Two-Colour Printing Press
Application
Print on Balloons
Print Interface
USB2.0
System Supported
No Need
Transport Package
Plywood
Trademark
HOYSTAR
Origin
China
HS Code
8443192900
Production Capacity
50 Set/Year

Product Description

Product Description Application:
This machine is specially customized and design for printing balloons, Whole machine case adopt 8 deformation design, suitable for printing image/logo or words on balloons, printing speed max. get 1000-1200pcs per hour, turntable servo motor and precision planet reducer control. Run smoothly, speed fast, loading by hand, automatic blowing, automatic printing ,automatic unloading.
Machine match balloon rotation device, with 2 printing function that 2 color 1 side or 1 color double side, with precision sensor, Can automatically identify whether there are balloons in the station, Design of unique Balloon blowing device and Balloon clamping device to made balloon blowing speed faster and high efficient

Technical parameter:
1) Printing balloon diameter 200-220mm
2) Printing area 130*130mm
3) Printing speed 1200pcs /hour
4) Air pressure 6-8 Bar
5) Voltage 220V 50HZ Single phase
6) Power 4.5KW
7) Dimension 1800*1500*1550mm

Function:
1) Automatic blowing function with non balloon non-blowing function
2) Automatic printing head with non balloon non-printing function
3) Automatic unloading with non balloon non-unloading
4) Air blowing pressure independent control, air pressure adjustable
5) Balloon automatic rotation with non balloon non-rotation, can print 2 side of balloon
6) With automatic hot air blowing function can dry ink faster
7) Turntable adopt serve motor and precision speed reducer control, Run smoothly and speed fast.
8) Balloon rotation adopt Unique vacuum device Combined fast rotating electric motor.
9) Machine every actions can be control independently, Convenient debugging machine
Detailed Photos

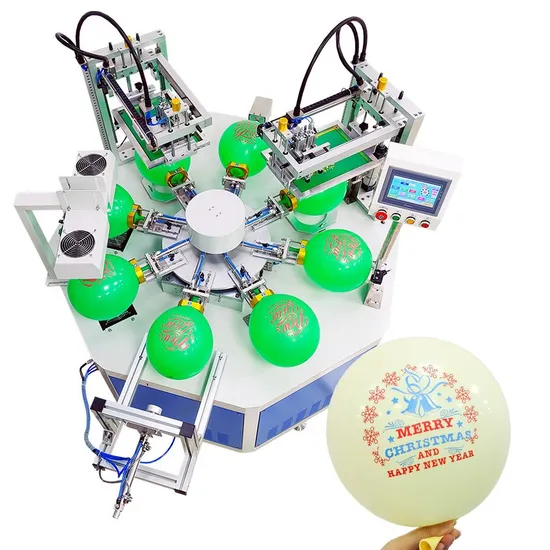

Rotary table with 8 workstation PLC and touch screen panel control,easy to use

With automatic unloading system
1 color print on double side
2 color print on 1 side
