US$1,000.00-3,000.00
|
1 Set
(MOQ)
|
Basic Info.
Application
Flour, All, Beans, Wheat, Starch, Rice flour, Corn Flour, Fish Meal, Animal Feed
Output (Kg/H)
10 - 2000 Kg/H
Feeding Size (mm)
1 - 12 mm
Output Size (Mesh)
10 - 120 Mesh
Mechanical Test Report
Offer
Video Factory Inspection
Yes
Material Quality
Stainless Steel
Local Service Location
India, Iran, Turkey, etc.
Showroom Location
India, Iran, Turkey, etc.
Lead Time
7 Working Days Before Details Confirmed
Support for Local Sample Rooms
Yes
Transport Package
Standard Plywood Case
Production Capacity
10-2000kg/H
Product Description
Product Description

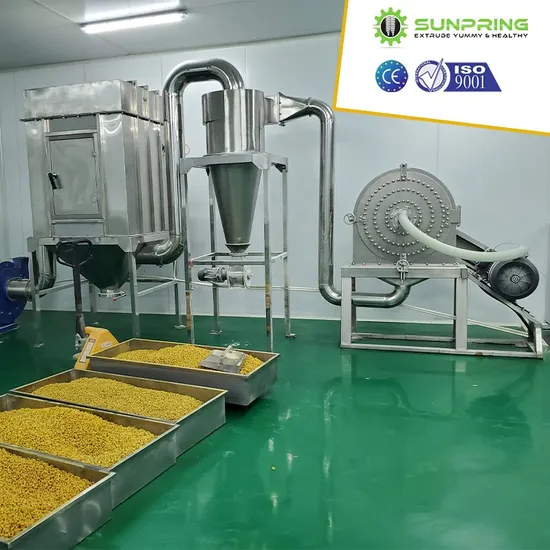

Stainless Steel Pulverizer
Milling classification:
1.The main features: With simple support and bottom box two structural forms, with drawing. Mirror two kinds of stainless steel material, can meet the needs of different customers, optional forced air cooling, water cooling models, to meet the crushing requirements of heat-sensitive materials:
2.Equipped with safe feeding device to ensure the safety of material crushing process:
3.Smooth operation, small vibration, low noise:
4.Maintenance, easy maintenance, easy to clean:
5.With anti-feeding device to prevent material splashing in the process of crushing:
6.The operation is simple and the size of the granularity can be controlled by changing the screen mesh.
Product Parameters
Item
Model
| FSJ320
| FSJ370
| FSJ450
| FSJ600
| FSJ800
| FSJ360CH
|
Diameter
(mm)
| 320
| 370
| 450
| 600
| 800
| 360
|
Main motor power (kw)
| 5.5/7.5
| 7.5/11
| 11/15
| 18.5/22
| 22/30
| 7.5/11
|
Speed of main shaft (rpm)
| 4500
| 3900
| 3200
| 2800
| 1800
| 3000
|
Weight (KG)
| 210
| 230
| 350
| 600
| 700
| 300
|
Input Size (mm)
| ≤12
| ≤12
| ≤12
| ≤12
| ≤12
| ≤12
|
Finished mesh
| 30-120
| 30-120
| 30-120
| 30-120
| 30-120
| 30-120
|
Output (kg/hr)
| 100-200
| 200-300
| 300-400
| 400-600
| 600-900
| 200-400
|
Voltage in China&Machines materials
Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries.
Machines materials: All the machines are made by stainless steel
