Hydraulic three roll thread rolling machine scaffolding threading machine

Product Details

Product Description

Product Description

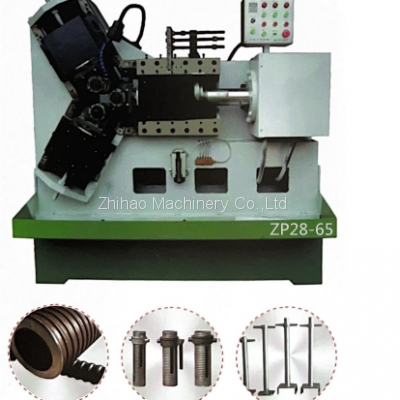

Hydraulic three roll thread rolling machine scaffolding threading machine
Model ZP28-65 automatic pipe thread rolling machine
Rolling thread range Diameter 80mm
Max thread pitch 8mm
Spindle angle ±6°
Max rolling pressure 250kn
Spindle RPM 22/28/35/45/56/70rpm
Roller size range Outside diameter 180mm
Hole 54mm
Max width 100mm
Rolling time 0.1-99.9s
Rest time 0.1-99.9ss
Spindle drive power 11kw
Hydraulic transmission power 3.0kw
Dimension 1800*2200*1800mm
Weight 3100kg
Any more questions for thread rolling machine and thread rolling die, pls contact freely.
whatsapp +8615512868421
Email: sales@zhihaomachinery.com

---
