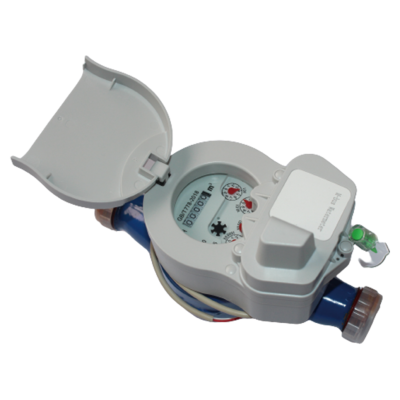

Product Details
Product Description
Product Description
Features
1.Support reed switch, magnetic resistance, Hall, non-magnetic and other measurement methods;
2.Support meter-side prepayment, built-in 5-level tiered water price, alarm water volume and overdraft water volume can be set;
3.Remotely control the valve, detect the abnormality of the valve, and report to the platform;
4.Periodic switch valve rust prevention, switch cycle can be set;
5.Compatible with CJ/T188, MODBUS, EN1434 and other protocols;
6.Support multiple communication interfaces such as M-BUS/RS485;
7.Support multiple baud rates of 1200bps,2400bps,4800bps,9600bps;
8.Support OTA, continuously optimize the functions.
Technical Parameter
| Nominal diameter | 15 | 20 | 25 | 32 | 40 |
| Range ratio | R80 | R80 | R80 | R80 | R80 |
| Minimum flow rate Q1 (L/h) | 31 | 50 | 79 | 125 | 200
|
| Boundary flow rate Q2 (L/h) | 50 | 80 | 126 | 200 | 320 |
| Normal flow rate Q3 (L/h) | 2500 | 4000 | 6300 | 10000 | 16000 |
| Overload flow rate Q4 (L/h) | 3125 | 5000 | 7875 | 12500 | 20000 |
| Power supply method | DC3.6V |
| Accuracy Class | Class 2 |
| Maximum allowable pressure | 1.6MPa |
| Temperature Class | T30/T50/T90 (optional) |
| Environmental Class | Class B |
| Flow field sensitivity Class | U10/D5 |
| Electromagnetic compatibility Class | Class E1 |
| Communication interface | M-Bus/RS485 |
| Protection Class | IP68 |
Outline Dimension
| Nominal Diameter | Length L (mm) | Width W (mm) | Height H (mm) | Thread Diameter D (mm) |
| DN15 | 165 | 110 | 137 | G3/4B |
| DN20 | 195 | 110 | 137 | G1B |
| DN25 | 230 | 110 | 137 | G1 1/4B |
>>
