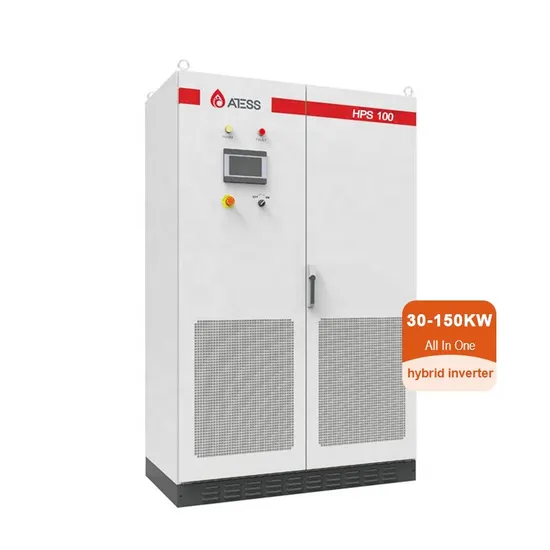

High Efficiency Atess HPS 30kw 50kw 100kw 120kw 150kw on/off Grid Hybrid Solar Inverter

Product Description

Product Description High efficiency Atess HPS 30kw 50kw 100kw 120kw 150kw on/off Grid Hybrid Solar Inverter Specification

Model	HPS30	HPS50	HPS100	HPS120	HPS150
AC(On Grid/Grid Connect)
Apparent Power	33KVA	55KVA	110KVA	132KVA	165KVA
Rated Power	30KW	50KW	100KW	120KW	150KW
Rated Voltage	400V	400V	400V	400V	400V
Rated Current	43A	72A	144A	173A	217A
Voltage Range	360V~440V	360V~440V	360V~440V	360V~440V	360V~440V
Rated Frequency	50HZ(45-55) 60HZ(55-65)	50HZ(45-55) 60HZ(55-65)	50HZ(45-55) 60HZ(55-65)	50HZ(45-55) 60HZ(55-65)	50HZ(45-55) 60HZ(55-65)
THDI	<3%	<3%	<3%	<3%	<3%
PF	0.8lagging-0.8leading	0.8lagging-0.8leading	0.8lagging-0.8leading	0.8lagging-0.8leading	0.8lagging-0.8leading
AC Connection	3L/N/PE	3L/N/PE	3L/N/PE	3L/N/PE	3L/N/PE
AC Input	60KVA	100KVA	200KVA	240KVA	240KVA
AC(Off Grid)
Apparent Power	33KVA	55KVA	110KVA	132KVA	165KVA
Rated Power	30KW	50KW	100KW	120KW	150KW
Rated Voltage	400V	400V	400V	400V	400V
Rated Current	43A	72A	144A	173A	217A
THDU	≤2% linear	≤2% linear	≤2% linear	≤2% linear	≤2% linear
Rated Frequency	50/60HZ	50/60HZ	50/60HZ	50/60HZ	50/60HZ
Overload Capability	110%-10mins 120%-1mins	110%-10mins 120%-1mins	110%-10mins 120%-1mins	110%-10mins 120%-1mins	110%-10mins 120%-1mins
DC(Battery&PV)
Max Input PV Voltage	1000VDC	1000VDC	1000VDC	1000VDC	1000VDC
Max PV Power	45kWp	75kWp	150kWp	180kWp	225kWp
PV Mppt Voltage	480V~800V	480V~800V	480V~800V	480V~800V	480V~800V
Battery Voltage Range at Max Charge Power	450V-600V	500V~600V	500V~600V	517V~600V	500V~600V
Battery Voltage Range	352V~600V	352V~600V	352V~600V	352V~600V	352V~600V
Max Charge Power	45KW	75KW	150KW	180KW	225KW
Max Discharge Power	33KW	55KW	110KW	132KW	165KW
Max Charge Current	100A	150A	300A	350A	450A
Max Discharge Current	93A	156A	313A	374A	467A
General Information
Protection Degree	IP20
Noise Emission	<65dB(A)@1m
Operation Temp.	-25ºC ~ +55ºC
Cooling	Forced-air
Relative Humidity	0-95% non condensing
Max. Altitude	6000m(derate over 3000m)
Dimension W*H*D	700*1660*600mm	950*1860*750mm	1200*1900*800mm	1200*1900*800mm	1200*1900*800mm
Weight	355kg	610kg	948kg	1025kg	1230kg
Transformer	Build in
Transfer time	Automatic transfer between ON/OFF Grid≤10ms
Self consumption	Standby Consumption<30W
Communication
Display	Touch Screen
Communication	RS485/CAN
Certificate	CE , MEA , PEA , AS 4777.2,EN 61000-6-4:2007+A1:2011 , EN61000-6-2:2005 , EN62109-1:2010 , EN62109-2:2011 , EN 50549-1:2019 , IEC62109.1 , IEC62109.2, NRS 097-2-1:2017, G99, VDE-AR-N 4105:2018,DIN VDE V 0124-100:2020-06
Mark: * Battery voltage is determined by the following equation: Vmin = 352 x Vn/V1 , VMax= (Vmpp - 100)*Vn/V2 , VMax<600VDC V1 is battery cell discharge cut-off voltage, V2 is battery cell boost charge voltage, Vn is battery cell nominal voltage.

System Architechture ATESS HPS bidirectional battery inverter is designed for energy storage system, it converts DC current generated by battery bank into AC current and feed it into the load/grid, also it can take power from solar inverter or grid to charge battery to ensure uninterrupted power supply to the load. Intelligent Monitoring * Open station supports one-click installation and registration * Problem support one-click dispatch and navigation * Safe operation, traceable logs, etc * Support full lifecycle data storage to ensure data security and reliability Project Cases Contact us

---
