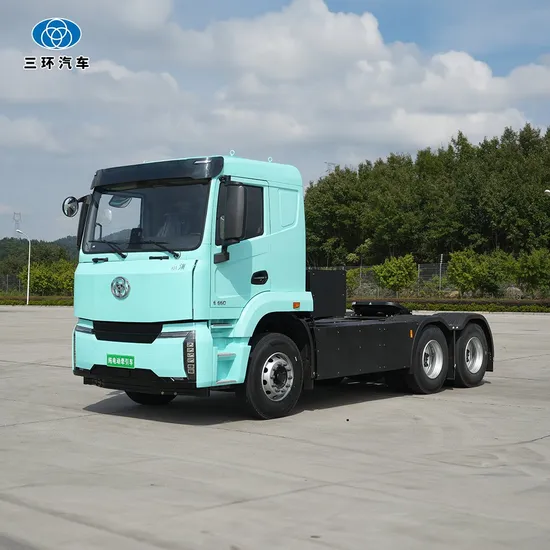

Tri-Ring 6 X 4 Pure Electric Tractor Truck China Factory Stq4258L09y8sbev Pure Electric Tractor Truck

Product Description

TRI-RING 6 X 4 Pure Electric Tractor Truck China Factory STQ4258L09Y8SBEV Pure Electric Tractor TruckProduct Description
Pure Electric Tractor Truck
A tractor is a large truck or semi-trailer that is towed by tools between the front and the carriage. That is, the front of the vehicle can be separated from the original carriage and tow other carriages, and the carriage can also be separated from the original front and towed by other fronts.
It is often used to transport large quantities of goods within or between workshops, such as transportation from automobile manufacturing warehouses to assembly lines and luggage transportation at airports.
Multi-angle Display
Product Parameters

Pure Electric Tractor Truck
Project Name			Product Description
Manufacturing Company Name			Hubei TRI-RING Automobile Co., Ltd.
Vehicle Model			STQ4258L09Y8SBEV Pure Electric Tractor Truck
Basic Vehicle Parameters	Drive Type		6×4
	Total Mass (Kg)		25000
	Curb Mass (Kg)		9800
Vehicle Appearance Parameters	Length (Mm)		7235
	Width (Mm)		2550
	Height (Mm)		3250
	Wheelbase (Mm)		3625+1350
Performance Parameters	Maximum Speed (Km/H)		89
	Maximum Climbing Grade		25%
Chassis Configuration Parameters	Motor	Drive Motor	Z300XS087A (01)
		Rated/Peak Power (Kw)	240/480
	Battery	Power Battery (KWh)	35000%
		Battery Layout	Back
Chassis Configuration Parameters	Cab	Type	Half-High Roof Luxury Version
		Model	Xiaoman (2.32M Wide)
		Standard Configuration	Four-Point Airbag Suspension, Car Machine (With Mobile Phone Interconnection, Four-Way Imaging, Air Conditioning Display) + Driving Recorder, Multi-Function Steering Wheel, Air Conditioning, Central Locking, Daytime Running Lights, Electric Hydraulic Flip, Electric Doors And Windows
	Front Axle	Type	Drum Brake
		Loadable Mass (Kg)	5500
	Rear Axle	Type	Drum Brake
		Loadable Mass (Kg)	13000
		Speed Ratio	5571
Chassis Configuration Parameters	Frame	Cross-Sectional Dimensions (Mm)	300 (8) High-Strength Plate
	Leaf Springs	Number Of Plates	2/3
	Tires	Type	Wire Tire
		Quantity	10+1
		Model	12R22.5-18
	Steering System	Type	Hydraulic Power Steering
	Braking System	Brake Type	Drum Brake, With ABS Anti-Lock Braking System
		Service Brake System Type	Dual Circuit Air Brake
		Parking Brake System Type	Spring Break
		Parking Control Type	Hand Brake Operation
	Electrical System	System Voltage	24V
		Battery	165AH Dual Battery
Top Configuration Parameters	Cargo Box	Cargo Box Dimensions (Mm)	-
		Material	-
		Chassis Material Thickness (Mm)	-
Other Configuration		4-Speed Manual And Automatic Transmission; 5-Speed Energy Recovery, Warning Triangle, Tool Kit

Detailed Photos
Working Principle Of Pure Electric Tractor Truck
Its working principle is :that there is a traction seat support on each of the two sides below the seat cover plate made of pressed steel plate, which is connected to the seat cover plate by a pin shaft. The traction seat base can rotate forward and backward relative to the seat cover plate with the pin shaft as the center. The bottom surface of the traction seat base is connected to the towed trailer with bolts.
A locking mechanism consisting of a horseshoe, an inclined iron, a hook tongue, an adjustment plate, a crossbar, a pull rod, and a spring is set below the seat cover plate. The horseshoe is fixed on the seat cover plate, and the hook tongue, the pull rod, and the cross bar are connected by a pin shaft. The inclined iron is also connected by a pin shaft, and the pull rod is connected to the rib plate under the seat cover plate by a spring. It is characterized in that the two tails behind the saddle-shaped seat cover plate are large arcs, and there is a butterfly-shaped concave surface in the middle, which divides the entire plane into 5 parts of similar size.Technical Drawing
One-stop Service Process
1. Consultation and demand confirmation
2. Quotation
3. Contract signing
4. Deposit payment
5. Production and delivery
6. Balance payment
7. Shipping and logistics
Company Profile
FAQ
Q1: Are you a manufacturer or a trading company?
A1: We are a manufacturer with over 40 years of experience in research and development, design, and manufacturing in China.
Q 2: How long is the delivery time for bulk orders?
A4: It depends on the order quantity. Generally, the delivery time is 15 to 40 working days. Please contact us before placing an order.
Q3: Do you provide OEM/ODM services?
A4: Yes, we accept OEM/ODM.
Q4: Can I customize transportation vehicles of various models?
A4: Yes. We have the most advanced modern production equipment and manufacturing processes. We can make products according to your special requirements.
Q5: How do you guarantee quality?
A5: Yes. We strictly control the quality of raw materials and finished products according to the ISO9001 quality control system. We guarantee that all products are 100% qualified.
Q6: How will you deliver my order?
A6: Generally, different shipping methods are adopted according to the quantity, volume, and weight of the order. For orders weighing 1 to 200 kilograms, we recommend air freight. For bulk orders, we will ship by sea. It depends on the specific situation. We will compare and find the best solution.
Q7: What's your MOQ?
A7: One Unit Trailer or Truck.

---
