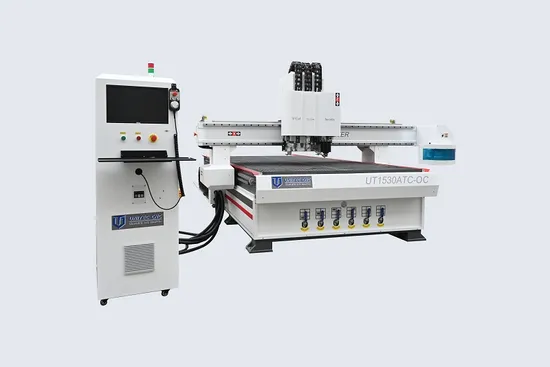

High Efficiency CNC Knife Cutting Machine with CE Eot Pot Creasing for Thick Acrylic MDF Wood Hard PVC Cardboard Corrugated Board

Product Description

Detailed Photos

MAIN PARTS
7.5KW Pump	CCD camera
Creasing Head	Easy Servo Driver
Easy Servo Motor	HSD 6KW SPINDLE
Heavy Duty Frame	Leyu Controller
Oscillating Head	Taiwan CSK Square Linear Guide

Product Parameters

XYZ Travel Size	1500 X 3000 X 220mm
Max Working Size	1500 X 3000 X 220mm
Table Size	1520 X 3100mm
Transmission Type	XY rack/ Z ball screw
Guide Rail	Linear Guide
Table Type	vacuum
Vacuum Pump	7.5KW water recycle cool pump or 4.8KW air pump
Spindle Power	6KW Italy HSD Spindle or China Spindle
Knife System	Oscillating + Creasing + Drag Knife + CCD camera
Spindle Speed	18000rpm
Max Travel Speed	40000mm/min
Max Work Speed	25000mm/min
Motor	Easy Servo otor
Work Voltage	AC380V 50HZ
Controller System	China Leyu
Processing Accuracy	±0.05mm
Repeat Positioning Accuracy	±0.01mm
File Format	G code or PLT
Overall Weight	1500KG
Overall Dimension	2700 X 3900 X 1900mm

Product Description Applicable industries and materials
Automobile Industry: Car Mats, leather seats, Aluminum Composite
Advertising industry: Acrylic, Flag Banner, KT board display stand, Foam Board, corrugated paper showcase , Reflective Strips, MDF, Plastic
Packaging industry: EVA Foam, Kraft Paper, corrugated paper, cardboard, hollow board, Grey board
Highlights
The large-size rectangular tube is welded as a whole, and the guide rail and rack mounting surface are processed by high-precision large gantry milling machine to maintain the overall stability of the machine Equipped with high-power spindle, it can not only process soft materials, but also process materials with high hardness, one machine is multi-purpose and has high efficiency Large load-bearing redundancy and long service life. The Y-axis is driven by dual motors and driven by planetary reducer, which makes the machine strong in rigidity, strong in strength and stable in rotation, so that it can run at high speed for a long time without deformation and shaking. The flexible form of the table is convenient for clamping materials, which improves the overall production efficiency Automatic refueling lubrication system, with a single touch. Regular maintenance is easy. The processing speed is fast and the efficiency is high. The processing quality is fine, the edge contour is clear, and the bottom surface is flat and smooth.. The main configuration is made of imported accessories, which effectively ensures the overall performance of the machine tool. Safety assurance, in strict compliance with CE electrical standards for circuit design and production, all moving parts have safe and reliable protection devices. Certifications
Packaging & Shipping
Exhibition
Company Profile Company Profile
Nanjing Unitec Technology CO., LTD is a dynamic and innovative manufacturer at the forefront of CNC Technology, which is located in Nanjing, Jiangsu Province, China.
Established in 2008, with a vision to provide cutting solutions and services, Unitec has been making significant strides in the markets of signmaking, metal working, woodworking, automative interior, package, etc . The company provides a wide range of products, such as CNC Router machine, CO2 Laser Cutting Machine, Fiber Laser Cutting machine and Digital Cutting Machine. And Unitec is staffed by a team of highly talented and dedicated professionals who are passionate about technology and committed to excellence.
Our company's products are exported to more than 100 countries and regions around the world, such as Japan, South Korea, the United Kingdom, Sweden, the United States, Norway, Finland, Germany, and so on.
Unitec is committed to innovation and continuous improvement. The company invests heavily in research and development to stay ahead of the curve and bring the latest technologies to its customers. With a focus on quality and customer satisfaction, Unitec ensures that every product and service it offers is of the highest caliber.
With its strong reputation, innovative products, and excellent customer service, Nanjing Unitec Technology CO., LTD is poised to continue its growth and success in the years to come.

---
