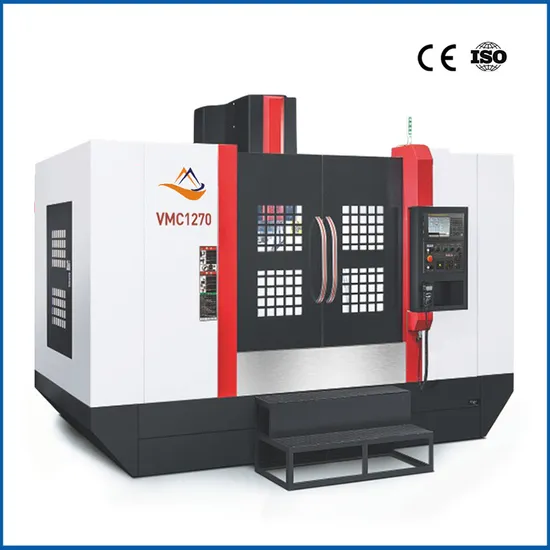

CNC 5 Axis Milling Machine Vmc 1270 High Quality Vertical Machinine Centro De Usinagem

US$35,000.00
1 Piece
US$28,000.00
2+ Pieces

Basic Info.

Model NO.
VMC1270
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE
Condition
New
Spindle Taper
Bt40
Spindle Motor
7.5/11kw
System
Syntec/Mitsubishi/Fanuc/Siemens
Max Load
650kg
Name
Mold Cutting CNC Vertical Machining Center
X/Y/Z Speed
36/36/36 M/Min
Tool Alignment
Auto Tool Checking
Working Table
1000*500
Precision
+-0.008mm
Repeat Precision
+-0.005mm
Power
5.5kw 380V 3 Phase
Spindle Speed
12000 Rpm
Max Working Speed
6m/ Min
Applicable Industries
Machinery Repair Shops, Manufacturing Plant, Mold
Type
4 Axis CNC Machine
Transport Package
Sea Worthy Plywood Case
Specification
2700*2900*2850
Trademark
WT
Origin
Dongguan City China Prc
HS Code
8457101000
Production Capacity
2000PCS/Year

Packaging & Delivery

Package Size
4450.00cm * 3460.00cm * 3400.00cm
Package Gross Weight
8200.000kg

Product Description

CNC 5 Axis Milling Machine Vmc 1270 High Quality Vertical Machinine Centro De Usinagem
Product Description
The fixed-column vertical machining center machine tool adopts mechatronics design, beautiful appearance, and can be used for precision cutting. After the workpiece is clamped once, the machine tool can automatically and continuously complete the processing of various processes such as milling, drilling, boring, expanding, reaming, tapping, etc. Used in auto parts, valves, construction machinery, T equipment, optical equipment, medical equipment and aerospace industries
Product Paramenters
Item unit VMC-850 VMC-866 VMC-1165 VMC-1275 VMC-1675
Journey
Three-axis travel (X/Y/Z) mm 850/540/520 860/600/600 1100/650/600 1200/750/700 1600/750/550
Distance from spindle centerline to column guide surface mm 570 650 745 825 766
Distance from spindle nose to work table mm 125-645 125-725 125-725 150-850 130-680
Workbench
Table size (length X width) mm 1000X500 1000X550 1200X600 1300X700 1700X650
Maximum load kg 550 650 800 1200 500
Number of T-slots X Slot Width X Spacing 5X18X100 5X18X100 51X8X110 51X8X150 5/14/130
Spindle
Spindle speed rpm 12000 12000 12000 12000 12000
Spindle taper hole BT40 BT40 BT40 BT40 BT40
Spindle motor power kw 7.5/11 7.5/11 11/15 11/15 5.5/7.5
Speed
Rapid traverse speed (X/Y/Z axis) m/min 48/48/48 36/36/36 30/30/30 30/30/24 30/36/48
Cutting feed rate m/min 10/10/10 10/10/10 10/10/10 10/10/10 10/10/10
Tool magazine
Number of tools T 24 24 24 24 24
Tool diameter/length/weight Ф75mm/300mm/7kg Ф75mm/300mm/7kg Ф75mm/300mm/7kg Ф75mm/300mm/7kg Ф75mm/300mm/7kg
The maximum diameter of the tool (full knife / adjacent empty knife) mm 75/150 75/150 75/150 75/150 75/150
Machine tool accuracy
Positioning accuracy (X/Y/Z) mm 0.008 0.008 0.01 0.01 0.012
Repeated positioning accuracy (X/Y/Z) mm 0.005 0.005 0.006 0.006 0.008
Other
Air source/air pressure 280L/min6-8bar 280L/min6-8bar 280L/min6-8bar 280L/min6-8bar 280L/min6-8bar
Total capacity of machine tools KVA 20 20 25 35 20
Tank volume L 400 400 420 260 250
Machine tool dimensions (X/Y/Z) mm 2500X2700X2700 2700X2900X2850 3000/3100/2880 4450X3460X3400 4000X3400X3000
Machine Weight (Approx.) kg 5500 5800 6800 8200 12000
