Product Details
Product Description
Product Description

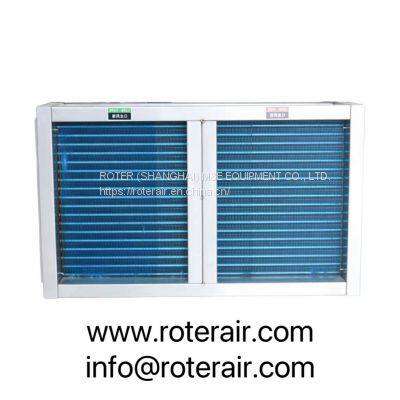

Heat Pipe Heat Exchanger
General Features
◆ Made of copper tube with hydrophilic aluminum fin, the air resistance is small, and condensate water can be effectively discharged smoothly, corrosion resistance performance is good
◆ The frame is made of galvanized steel, and the stainless steel frame is for option
|
Copper tube OD 9.52mm
|
|
Blue fin (fin spacing 2.2mm)
|
◆ No cross-contamination between fresh air and exhaust air, the temperature efficiency is high
◆ The medium is corrosion-free and safe
◆ Vertical and horizontal structure are available for option
Working Principle
|
Working Condition In Summer
|
|
Working Condition In Winter
|
U-shaped Dehumidifying Heat Pipe
General Features
◆High quality copper pipe with aluminum fin, adopt 12MPa water pressure expansion tube or mechanical expansion tube method. Double flanged sinusoidal corrugated fin and fork type copper pipe, makes the fin spacing is uniform, the air velocity is uniform, the heat transfer is uniform, too
◆The special hydrophilic coating makes the surface of the aluminum foil (blue fin) have good hydrophilicity, and can remove the "water bridge" phenomenon when the heat exchanger is working, improve the heat transfer performance and reduce the power consumption of the equipment
◆Double drying and double coating process, good lasting hydrophilic angle, strong adhesion, alkali resistance, heat resistance and salt spray resistance
◆The frame and end plates are made of 1.5mm thick high quality galvanized steel, the stainless steel frame and end plates are for option.
| |
Copper pipe
|
| |
Sinusoidal corrugated fin
|
Working Principle
|
| The Cooling coil is between the Pre-cooling section and Re-heating section of the U shape heat pipe |
Applications of Heat Pipe Heat Exchangers
Applied in Air Ducts:
The heat pipe heat exchanger or it’s functional section can be directly connected with the air duct. The installation is simple and convenient. While realizing energy recovery, y also saves investment
Applied in Fresh Air Ventilators:
The heat pipe heat exchanger can be horizontally installed in the fresh air ventilator, and the energy recovery can be realized through the operation of the supply fan and exhaust fan
Applied in Modular Air Handling Units:
Roter brand heat pipe heat exchangers are widely installed in modular air handling units, which not only can realize the energy recovery from return air, but also can achieve dehumidification and reheat functions based on AHU’s functional sections
>>
