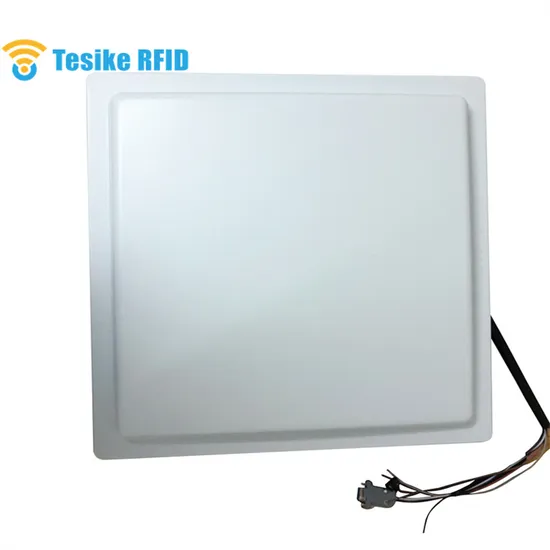

Long Range 5m UHF RFID Reader RS485 RS232 Wg26/34 for Parking System

Product Description

Long Range 5m UHF RFID Reader RS485 RS232 Wg26/34 for Parking system
Sample Test before you place an order to us !



Long range--Up to 25m or longer distance depends on your tag
Free DEMO & SDK for testing and developing (C#, C++, VC, JAVA)
Free sample tag for testing
Easy operating

TESIKE UHF RFID Reader is a new and innovative antenna built-in integrated RFID Reader
which is compatible with IS018000 and EPC Class 1 Gen2 of RFID tags. It solves many
problems successfully associated with remote identification, identification of fast
moving objects and multi-cards identification . This RFID Reader's design includes
Weigand ;RS485; RS232; WIFI(optional) and TCP/IP RJ45(optional) output interfaces.
This product exceeds the basic capability recommended by the advanced technology indicators.
Specification

RS232 Free SDK 5 Meters Long Range UHF RFID Reader
Support Protocol	ISO18000-6C (EPC CLASS1 GEN2)
Working Frequency	902~928 MHz (USA) or 865~868MHZ (European)
Encryption	Can encrypt directly, anti-copy
Transmit Power	0dbm~30dbm(Adjustable by software)
Software & SDK	DEMO and C#, VC, Java SDK
Anti-thunder	6000V
Frequency modulation	Hopping or fixed frequency
Antenna	12dBi circular polarization
Interface	WG 26/34 ; RS232 ; RS485; Customized --TCP/IP RJ45; WIFI
Storage Temp	-40 ~ +100°C
Working Tem	-20 ~ +80°C
Case material	ABS
Dimension	235*235*57mm
Weight	5kg
Power supply	Adapter (into +12V DC)
Read Distance	Up to 25M (according to tag),can adjust by software
Read Prompt	Buzzer

Packing information:

Packing TSK9001
Quantity	Dimension(cm)	Weight(kg)
1pcs	43*26*10cm	3.0kg
6pcs	56*33*44m	12kg

Application:
Piles
Smart wine cabinet
printer/duplicator
Attendance machine
Advertising tablet PC
Medical Electronic Equipment
Identification card scanner
Smart game equipment
Hand-held intelligent terminal
POS consumption endpoint
We will offer free DEMO and SDK for testing and developing, pls feel free to send us inquiry to ask for the SDK
files before purchase !! We have 5m /20m~25m models for different projects, please check our models below:
5 Meters Model TSK9001 --USA Standard(902~928MHz)
20m~25m Model TSK9002--USA Standard(902~928Mhz)
10-12m Model TSK9003--USA Standard(902~928Mhz)

---
