Durable Tubular Screw Conveyor System for Industrial Applications Tubular Screw Conveyor

Product Description

Product Description
Product introduction: Tubular screw conveyor is mainly used for conveying cement and fly ash materials in concrete mixing plants. It is also suitable for chemical, metallurgical, granary processing, storage and other places. The screw body of the machine has a small diameter, high speed, large conveying capacity, high precision and good conveying conditions. The drive device adopts a gear reducer , which has large torque, low noise, no oil leakage and long service life. The conveying shell is made of high-quality seamless pipe and flange connection . The equipment has good overall rigidity and large load-bearing capacity. During conveying, it can be continuously conveyed whether it is horizontal conveying or large inclination angle, and the working position and working state can be selected at will. It is easy to disassemble and repair, safe and reliable.
Working principle: Tubular screw conveyor, also called tubular screw conveyor, uses a rotating screw to move the conveyed material along the fixed casing to complete the conveying work. The head and tail bearings are moved outside the casing, the hanging bearings are sliding bearings with dustproof sealing devices, the bearings are generally made of powder metallurgy , felt bearings are used for conveying cement, and the hanging shaft and the screw shaft are connected by sliders.
In addition to its durability and robust design, the tubular screw conveyor also boasts of its energy efficiency. By utilizing the rotating screw to smoothly transport materials, it significantly reduces friction and power consumption, making it a cost-effective solution for various industrial applications.
The high-quality seamless pipe construction of the conveying shell ensures smooth material flow with minimal wear and tear, further extending the service life of the equipment. The flange connection also provides a secure and reliable joint that withstands the rigorous demands of continuous operation.
One of the key advantages of the tubular screw conveyor is its versatility. Whether it's horizontal conveying or at a large inclination angle, the conveyor can handle the task efficiently. This flexibility allows for more flexibility in layout design and optimization of the production process.
The ease of disassembly and repair is another significant aspect of this conveyor. The modular design and the use of standardized components make maintenance tasks quick and straightforward. This reduces downtime and ensures continuous operation of the production line.
The hanging bearings with dustproof sealing devices ensure that dust and contaminants are kept away from the bearings, further enhancing the durability and reliability of the conveyor. The powder metallurgy bearings are specifically designed to handle the harsh conditions of cement conveying, while the use of felt bearings provides additional protection against wear and tear.
The hanging shaft and screw shaft connection via sliders also contribute to the overall efficiency and stability of the conveyor. This design allows for smooth rotation of the screw shaft while minimizing friction and wear.
In summary, the tubular screw conveyor offers a robust, reliable, and energy-efficient solution for material conveying applications. Its versatile design, ease of maintenance, and dustproof sealing devices make it a valuable addition to any industrial production line.

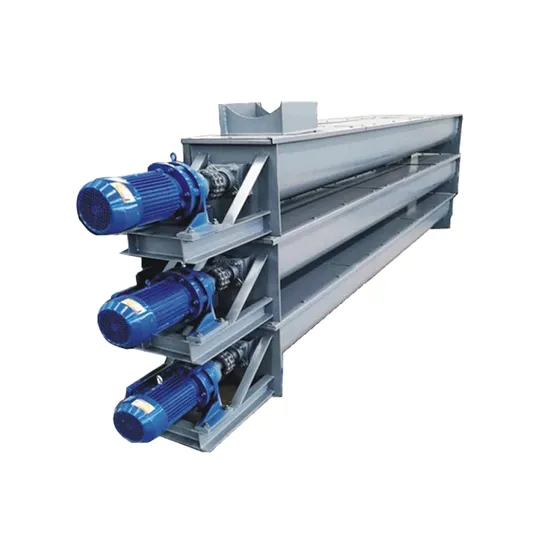

Detailed Photos

Product Parameters

Product Model		LSY100	LSY120	LSY140	LSY160	LSY200
		LSY100-1	LSY120-1	LSY140-1	LSY160-1	LSY200-1
		LSY100-2	LSY120-2	LSY140-2	LSY160-2	LSY200-2
Spiral diameter (mm)		88	108	140	163	187
Shell tube diameter (mm)		114	133	168	194	219
Allowable conveying angle (α°)		0-60	0-60	0-60	0-60	0-60
		0-30	0-30	0-30	0-30	0-30
		0-15	0-15	0-15	0-15	0-15
Maximum conveying length (m)		8	8	10	12	13
		10	10	12	16	17
		12	12	15	20	22
Maximum conveying capacity (t/h)		6	12	18	30	48
		4	8	13	22	30
		3	6	9	15	20
Input power (KW)	L<7m	0.75-2.2	0.75-4	1.1-5.5	2.2-7.5	3-11
	L=7~10m	1.1-3	2.2-5.5	3-7.5	3-11	5.5-15
	L>10m	2.2-4	4-7.5	4-11	5.5-15	7.5-18.5
