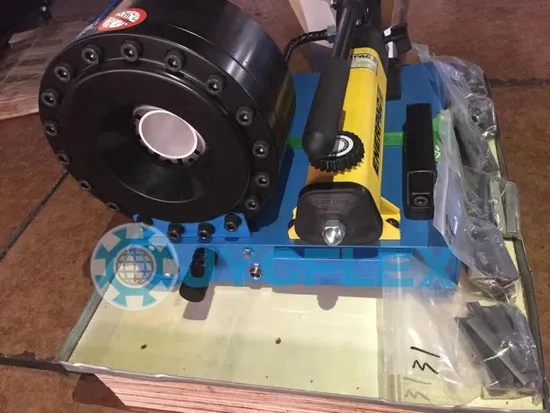

Portable Auto AC Hose Crimper Kit 1/8-1′′ 2sn Hydraulic Pipe Pressing Machine

Product Description

Product Feature
High Efficiency High Precision Good Product Consistency
Low labor Intensity Good Management Simple In Operation
Product Description

SPECIFICATIONS FOR HYDRAULIC HOSE CRIMPING MACHINE
Production name	1inch manual hose crimping machine	Machine model	JYC-P16
Machine type	manual hydraulic crimping tool	Application	crimping hydraulic hose
Crimping range	6-25mm(1/4--1 inch)	System pressure	31.5Mpa
Crimping force	1450KN	Operation mode	manual
Dies set	7 sets	Die length	70mm
Dimension	500*400*370mm	Weight	37kg
Voltage	/	Power	hand pump

Crimping machine head
Use 40CrV,hardness of the cylinder and front cover HRC59-63High Precision Micrometer
Limit valve.rotary positioning.scale adjustment,high pressure
The crimping size is controlled by a high precision micrometer up to 0.01mm accuracy.Hydraulic gauge
Indicates the pressure value.
When it reaches 35 MPa, the crimping should be stopped immediately.Machine dies
Special treatment and keep stable and strong.
1.P16 manual hose crimper is with 37KG light weight, can be take to any place that needed.
2.The hose crimping machine is operated by hand pump, no power supply need.
3.The hardness of the dies base and dies sets is high, to ensure the long service life.
4.P16 can crimp hose from 1/4'' to 1'', customer can choose our 7 die sets with standard length and size or customized die sets.
5.The dies sets are put into the box on the bottom of the machine. It make the user easier to store the die sets when it not been used.
Product Application
Customer Feedback
Company Profile
Our enterprise built up for 16 years! Made up of 10 years experienced professional R & D Worker and QC persons.
Our hydraulic products will be checked in each step, then double checked by QC, last packed and delivered to warehouse.
Our hydraulic crimping machines get the CE certification.
Our factory have advanced industrial production process to save expenses,and offer all our customers a good price to win in their market!
We have the deep desire to cooperate with you, we are experienced and have the faith to make you satisfaction with our hydraulic products and service.
We have customers in UK, US, Russia, Australia, UAE, Kenya, Bolivia, Philippines, etc. Email me or call me directly, we can't wait to see you!Packaging & Shipping
Our servicePre-Sales Service* Inquiry and consulting support.
* Sample testing support.
* View our Factory.After-Sales Service*24x7 service
* Training how to install and use the machine
* Engineers available to service machinery overseas.CertificationsFAQ:
1.Question:What Certificates do you have ? Answer:CE,ISO
2.Question:What is the MOQ? Answer:1 set for you test.
3.Question:What is the delivery time? Answer:The machines are all in stock now, that can be delivered as you need.
4.Question:What is the payment? Answer:We recommend T/T in advance, as most of our crimping machine model are in stock. L/C,western union,paypal and money gram also can be accepted.
5.Question:Can you make customized designs or LOGO? Answer:Sure, we could customize the color,logo and so on as your request.

---
