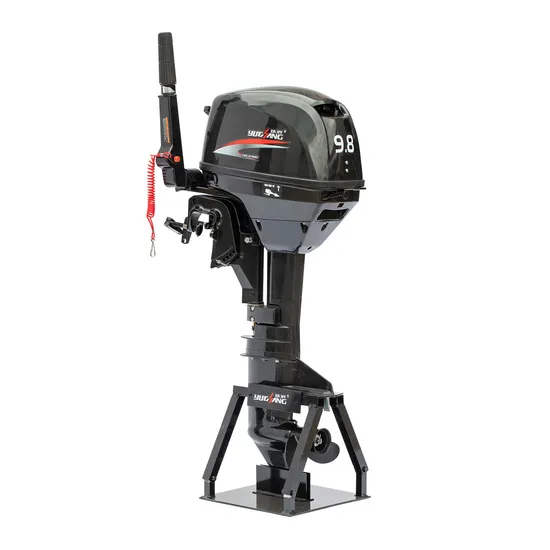

| Model 9.8H |
| Demension Overall Length: 510mm(20in) Overall Width : 280mm(11in) Overall Heights: 1020mm(40.1in) Overall Height L: 1145mm(45in) |
| Weight S: 26.5Kg(58.4lbs) /L: 28Kg(61.7lbs) |
| Full Throttle Operating Range 5000-6000r/m |
| Maximum Output 7.2-9.8kw/9.8hp |
| Idling Speed 1000 ±50r/m |
| Dis placement 169cc |
| Bore X Stroke 50X43mm(1.96X1.69in) |
| Ignition System CDI |
| Spark Plug NGK BR7HS-10 |
| Spark Plug Gap 0.9-1.0mm |
| Control System Tiller Handle |
| Starting System Manual |
| Starting Carburetion System Choke Valve |
| Gear Position Forward-Neutral-Reverse |
| Gear Ratio 2.08 (27:13) |
| Trim And Tilt System Manual Tilt |
| Recommended Fuel Unlead Gasoline |
| Recommended Engine Oil 2-Stroke Outboard Motor Oil |
| Gear Oil 0.250L |
| Fuel Tank Capacity 12L |
| Torque 12N.m/2500rpm |
| propeller F8.5 |
| Fuel Consumption 6.5L/h |
| Packing Size 106*66*38.5CM |
