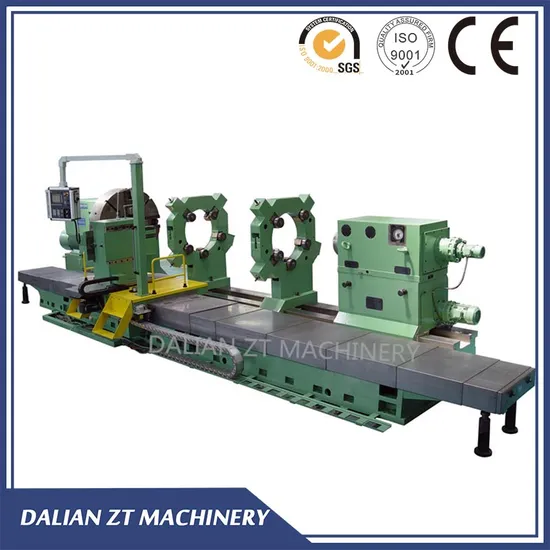

Large Horizontal Heavy-duty CNC Lathe CK61180 1800mm Dia. CNC Torno

Product Description

CK61180X6000
Features: Flat bed structure;high rigidity;heavy load capacity and good reliability; The rotary built-in center in the tailstock features with heavy load and is easy to operate; Rapid movement function; The model of lathe is specially suitable for the following industries: paper making, textile, rubber and shipbuilding etc.. The lathe is suitable to machine large sized parts, such as disc type, rubber roller; it can also cut tread, drill hole and bore hole.

ITEM	SPECIFICATIONS
SWING OVER BED	1,800 mm
SWING OVER CARRIAGE	1,400 mm
DISTANCE BETWEEN CENTERS	6,000 mm
SUPPORT WEIGHTS BEWTEEN CENTERS	32 TON
WIDTH OF BED	1,600 mm WITH FLAT 3 GUIDEWAYS
SPINDLE SPEED	3 STEPS, 0.8 TO 160 RPM
TORQUE OF FACEPLATE	80 kNm
DIAMETER OF SPINDLE ON THE FRONT SUPPORTING	320mm
SPINDLE TAPER HOLE	140 mm; 1:7
BEARINGS IN SPINDLE	NSK OF JAPAN
DIAMETER OF CHUCK	1,600 mm
TRAVEL OF X-AXIS	800 mm
TRAVEL OF Z-AXIS	6000 mm
FEEDING SPEED IN X-AXIS	1 TO 1000 mm/min
FEEDING SPEED IN Z-AXIS	1 TO 1000 mm/min
RAPIDN TRAVESE IN X-AXIS	4,000 mm/min
RAPIDN TRAVESE IN Z-AXIS	4,000 mm/min
MAX. CUTTING FORCE OF TOOL POST	70 KN
TRAVEL OF TOOL ROW	320 mm
SIZE OF TOOL HOLDER	70×70 mm
RANGE OF THREADING	1 TO 200 mm
MOVEMENT OF TAILSTOCK QUILL	250 mm
TAPER HOLE OF TAILSTOCK QUILL	100 mm; 1:7
TRAVERSE SPEED OF MOTORIZED TAILSTOCK	2,500 mm/min
TRAVERSE SPEED OF QUILL IN TAILSTOCK	10-200 mm/min
POWER OF MAIN MOTOR WITH ADJUSTING SPEED DEVICE	DC 75 KW
ADJUSTING SPEED DEVICE FOR MAIN MOTOR	6RA70 OF SIEMENS
CONTROL SYSTEM	SIEMENS 828D
SERVO MOTOR FOR X-axis & Z-axis	41 Nm
BALLSCREW OF X-AXIS	MADE BY GERMANY
REDUCER OF of Z-AXIS	MADE BY Europe

ACCESSORIES
FOUR JAWS CHUCK, DIA. OF 1,600 mm
STEADY REST (STEADY IN CLOSE TYPE), 500 to 750 mm
MEASURING DISPLAY FOR CENTERING FORCE IN TAILSTOCK
WORK LIGHT
Foundation boLTS and LEVELING PADS
DEAD CENTER
CONSTANT TEMPERATURE DEVICE OF LUBRICATION
ELECTRICAL CABINET WITH AIR-CONDITIONER
OPTIONAL ATTACHMENT
ROLLER SUPPORT
LINEAR ENCODER
CONVEYOR, LENGTH 6 METERS

Quality Control & Inspection before Packing
We control the assembly quality as well as control the quality of casting and parts/units to ensure the machines will be good enough from appearance to performance and stability keeping.
After testing and painting before packing, we will check all the accessories item by item:
Packing & Local Transportation & Fixing
Normally we will pack the machines with fumigated wooden cases or poly wooden case and steel pallets. When the machines are loaded into the container, fixing job will be done to ensure the sea shipment safety.
Exhibitions & Customers' Visiting
1. How can I choose the most suitable machines?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you, too.
You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are 100% new and not used, only made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.

3. Is machine tested?
A: The accuracy, noisy will be tested according to China GB standard. Some machines will

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5. What's the Payment Terms?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Irrevocable L/C at sight also acceptable.

6. Do you accept cash or L/C?
A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account.
7. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)
8. How is the warranty?
A: 12 months after shipment date
9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.

---
