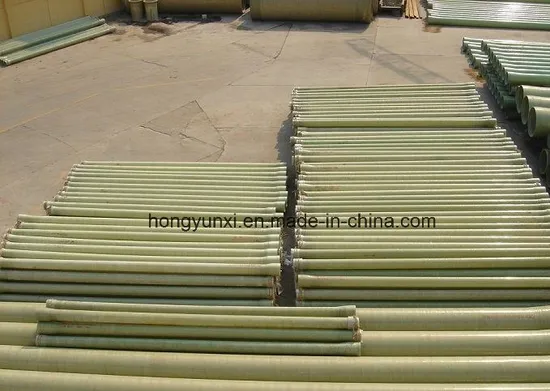

FRP Cable Casing Pipes for Electric Power

Product Description

For FRP cable casing pipe, resin serves as the basis, reinforced by continuous fiber glass and its fabric, controlled by computer, forming by filament winding or pultrusion process.
Advantages of FRP cable casing pipe:
1.High strength,smooth inner surface(friction coefficient is small,the pass of the cable is convenient and smooth,no damage for the cable),light weight (density only 1/4 of the steel pipe'), convenient transportation, easy installation,no deformation.
2.No electric corrosion,nonmagnetic,suitable for the single-core cable,and no vortex occurs.
3.Good chemical resistant,especially resisting rain water or seawater.
4.Heat-resistant,it can be used in the condition of 120ºC for long time.
5.Insulation,chemical-resistant,rustless.Its service life is more than 50 years without maintenance, invest one time and benefit all life.
Purpose:
The FRP cable casing pipe is suitable for the laying of the cable be used for electric power and comminication at various occasions. Especially the cable which passes the traffic arteries,river,bridge special enviroment,it can represent the easy construction,high strength,advantages adequately.The FRP cable casing pipe is widely used for electric power,communication,traffice,infrastructure establishment of civil aviation airport etc.
LIST OF SIZE OF FRP CABLE CASING PIPE

DIAMETER	Nominal thickness			Inner diameter of socket end			Depth of socket en	Nominal length
	t			D1
	DB-N	DB-R	DB-E	DB-N	DB-R	DB-E	S	L
100	3	5	8	116	120	126	80	4000
125	5	-	8	145	-	151	100	4000
150	5	8	10	170	176	180	100	4000
175	8	10	12	201	205	209	100	4000
200	8	10	14	226	230	238	120	4000

Note: For the special sepcification shall be made according to the client's requirements.
Mechanical properties of FRP cable casing pipe

No.	Item	Unit	Index
1	Bend strength	MPa	≥135
2	Tensile strength	MPa	≥120
3	Impact property	-	no cracks
4	Stiffness while the radial variety ratio is 10%	MPa	DB-N,DB-R,DB-E ≥1.2,≥2.4,≥5.0
5	Heat distortion temperature under bend load (Maximum bend positive stress is 1.81 MPa)	ºC	≥130
6	Retention ratio of bend strength after soaked in water	%	≥80
7	Barcol hardness	-	≥35
8	Index of oxygen	%	≥26
9	Sliding friction coefficient	-	≤0.34
10	Heat resistance factor	ºC▪m/w	≤4.8

---
