Lathe Machine Parallel Lathe Machine Big Lathe Manual Lathe Cw6163 Cw6180q Cw61100q Precision Machine Price

Product Description

Product Description
Lathe Machine Parallel Lathe Machine Big Lathe Manual Lathe CW6163 CW6180Q CW61100Q Precision Machine Price
The heavy-duty horizontal lathe machine is designed using advanced international methods and manufacturing technology, following the latest national precision standards. It incorporates electrical, automatic control, hydraulic control, and modern mechanical designs from various disciplines and categories of precision manufacturing technology.
The CW6150, CW6163, CW61100, CW61125, and CW61160 heavy-duty lathes are suitable for turning or machining cast iron and steel workpieces as well as medium to large non-ferrous metal parts. They can perform external cylindrical surface turning, internal hole and end face turning, and various internal and external metric, inch, module, and diametrical pitch threads. The top slide can be used independently for turning of short tapers. These lathes boast high power, high rigidity, and a wide range of rotating speeds, making them ideal for high-speed and strong force turning operations.
Key Features:
1. A versatile lathe suitable for high-speed steel and carbide cutting tools for different materials.
2. Medium frequency hardening for improved hardness and precision.
3. Strong spindle rigidity and supporting capacity for stable machining operations.
4. Large speed range with smooth motion and low temperature rise for efficient processing.
Product Parameters

Technical items Model	CW6163 / CW6263	CW6180Q / CW6280Q	CW6180B / CW6280B	CW61110Q / CW62110Q	CW61125Q / CW62125Q	CW61125B	CW61160B	CW61160	CW61200	CW61250
Swing diameter over bed	630mm	800mm	800mm	1100mm	1250mm	1250mm	1600mm	1600mm	2000mm	2500mm
Swing diameter over carriage/cross slide	350mm	480mm	480mm	800mm	920mm	860mm	1200mm	1200mm	1600mm	2100mm
Swing diameter over gap/saddle	CW6163-- No gap	CW6180Q-- No gap	CW6180B-- No gap	CW61110Q-- No gap	CW61125Q--No gap	No gap
	CW6263-- 800mm	CW6280Q-- 1000mm	CW6280B-- 1000mm	CW62110Q-- 1300mm	CW62125Q--1500mm
Max. Length of workpiece	1500mm; 2000mm; 3000mm;4000mm; 5000mm; 6000mm; 8000mm; 10000mm; 12000mm; 14000mm; 16000mm; 18000mm; 20000mm
Max. Weight of workpiece	2 tons	2 tons	2.5 tons	2.5 tons	2.5 tons	6 tons	6 tons	16 tons	16 tons	16 tons
Spindle hole diameter	105mm	105mm	105mm	105mm	105mm	130mm	130mm	130mm	130mm	130mm
Guide rail width	550mm	550mm	600mm	600mm	600mm	755mm	755mm	1100mm	1100mm	1100mm
Main motor power	11 kw	11 kw	11 kw	11 kw	11 kw	22 kw	22 kw	22 kw	22 kw	22 kw

Following is 32 tons load capacity heavy duty lathe machine

Model		C61160	C61200	C61250	C61315
Max.swing over bed	mm	1600	2000	2500	3150
Max.swing over carriage/tool post	mm	1200	1600	2000	2600
Width of bed (Three lathe beds)	mm	1600	1600	1600/2100	2100
Max.length of workpiece	m	5-20	5-20	5-20	5-20
	ton	32	32	32/75	75
Max.torMax.weight of workpieceque of face plate	kg.m	8000	8000	8000	8000
Max.cutting capacity tool post	kg.m	8000	8000	8000	8000
Section dimension of tool shank	mm	70x70	70x70	70x70	70x70
Headstock
Progression of spindle speed		Stepless	Stepless	Stepless	Stepless
Range of spindle speed	rpm	1~200 0.8-160 0.025-125	1~200 0.8-160 0.025-125	1~200 0.8-160 0.025-125	1~200 0.8-160 0.025-125
Diameter of chuck	mm	1600	2000	2500	3150
Knife rest
Step. No of feed	step	18	18	18	18
Range of longitudinal feed	mm/r	0.125-48	0.125-48	0.125-48	0.125-48
Range of cross feed	mm/r	0.063-24	0.063-24	0.063-24	0.063-24
Feed range of tool slide compound	mm/r	0.063-24	0.063-24	0.063-24	0.063-24
Longitudinal rapid traverse speed	mm/min	3000	3000	3000	3000
Cross rapid traverse speed	mm/min	1500	1500	1500	1500
of cross slide	mm	670	800	1000	1250
Metric thread (thread pitch)	mm	2-40	2-40	2-40	2-40
Inch thread	mm	1-14	1-14	1-14	1-14
Module thread	mm	1.5-20	1.5-20	1.5-20	1.5-20
Tailstock
Traversing capacity of sleeve	mm	200	200	300	300
Rapid traverse of tailstock	mm/min	3000	3000	3000	3000
Rapid traverse of sleeve	mm/min	664	664	664	664
Power
Main motor power	kw	75	75	90	118

Detailed Photos
1. CW6163/CW6263 Series Lathe Machine ( 2tons load capacity):
Swing over bed: 630mm;
Swing over cross slide: 350mm;
Processing length: it's up to customer's requirements;
Bed width: 550mm;
Load capacity: 2 tons;
Spindle bore: 105mm [Optional 130mm];
Main motor power: 11kw.

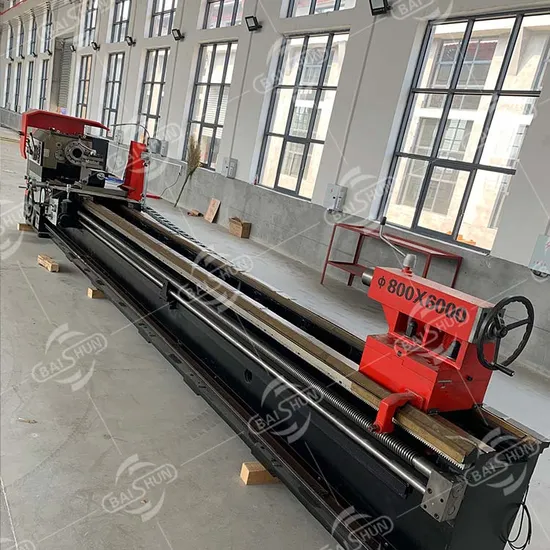

2. CW6180Q/CW6280Q Series Lathe Machine( 2tons load capacity): Swing over bed: 800mm;
Swing over cross slide: 480mm;
Processing length: it's up to customer's requirements;
Bed width: 550mm;
Load capacity: 2 tons;
Spindle bore: 105mm [Optional 130mm];
Main motor power: 11kw.

3. CW6180B/CW6280B Series Lathe Machine( 2.5 tons load capacity):
Swing over bed: 800mm;
Swing over cross slide: 480mm;
Processing length: it's up to customer's requirements;
Bed width: 600mm;
Load capacity: 2.5 tons;
Spindle bore: 105mm [Optional 130mm];
Main motor power: 11kw.

4. CW61110Q/CW62110Q Series Lathe Machine( 2.5 tons load capacity):
Swing over bed: 1100mm;
Swing over cross slide: 800mm;
Processing length: it's up to customer's requirements;
Bed width: 600mm;
Load capacity: 2.5 tons;
Spindle bore: 105mm [Optional 130mm];
Main motor power: 11kw.

5. CW61125Q/CW62125Q Series Lathe Machine( 2.5 tons load capacity):
Swing over bed: 1250mm;
Swing over cross slide: 920mm;
Processing length: it's up to customer's requirements;
Bed width: 600mm;
Load capacity: 2.5 tons;
Spindle bore: 105mm [Optional 130mm];
Main motor power: 11kw.

6. CW61125B Series Lathe Machine( 6 tons load capacity):
Swing over bed: 1250mm;
Swing over cross slide: 860mm;
Processing length: it's up to customer's requirements;
Bed width: 755mm;
Load capacity: 6 tons;
Spindle bore: 130mm;
Main motor power: 22kw.
8. CW61160 Series Lathe Machine( 16 tons load capacity):
Swing over bed: 1600mm;
Swing over cross slide: 1200mm;
Processing length: it's up to customer's requirements;
Bed width: 1100mm;
Load capacity: 16 tons;
Spindle bore: 130mm;
Main motor power: 22kw.
9. CW61200 / CW61250 Series Lathe Machine( 16 tons load capacity):
Swing over bed: 2000mm;
Swing over cross slide: 1600mm;
Processing length: it's up to customer's requirements;
Bed width: 1100mm;
Load capacity: 16 tons;
Spindle bore: 130mm;
Main motor power: 22kw.
10. C61200 Series Lathe Machine( 32 tons load capacity):
Swing over bed: 2000mm;
Swing over cross slide: 1600mm;
Processing length: it's up to customer's requirements;
Bed width: 1600mm (Three bed ways);
Load capacity: 32 tons;
Main motor power: 75kw.
11. CNC Series Horizontal Lathe Machine:
Swing over bed: from 500 to 3150mm.
We are a direct-sale lathe machine manufacturer, not a trading company, which means we can offer you the best prices.
Welcome get in touch with us:)
Our Advantages
Our Services
We can provides 7x24-hour online pre-sale service, engineer follow-up order service, and logistics delivery operation service, And also we can provide installation services. In addition, with more than 10 years experience of various markets, we can help customers successfully complete a series of services from purchasing to goods Customs clearance, thereby saving times and also reducing customers' costs in all aspects.

Our advantage:
1: With CE, ISO certification.
2: Full production tracking.
3: Professional engineers can guarantee the highest quality.
4: More suppliers as alternatives, guarantee your lowest and competitive price.
5: Sales fstaff with more than 10 years experience, will answer your pre-sales and after-sales questions.
6: OEM production is available, to meet customer needs
7. Low MOQ (1 unit) is available.
8. 24 hours technical support.

Warranty period:
During warranty period (one year), if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact us, we will supply our best service to you as usual.
1. Technical support online service provided .
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5. Spare parts replacement and repair service provided.
6. All of the questions will be replied within 24 hours

---
