US$3,000.00-8,000.00
|
1 Set
(MOQ)
|
Basic Info.
Voltage
110V-480V,50Hz/60Hz
Water Application
for Irrigation or in Hotel or on Boat
Control Valve
Auto Control Valve
Inlet Water
Underground Water, Sea Water
Transport Package
Wooden Case
Specification
KYSW-750L/H
Production Capacity
200 Sets/Month
Product Description

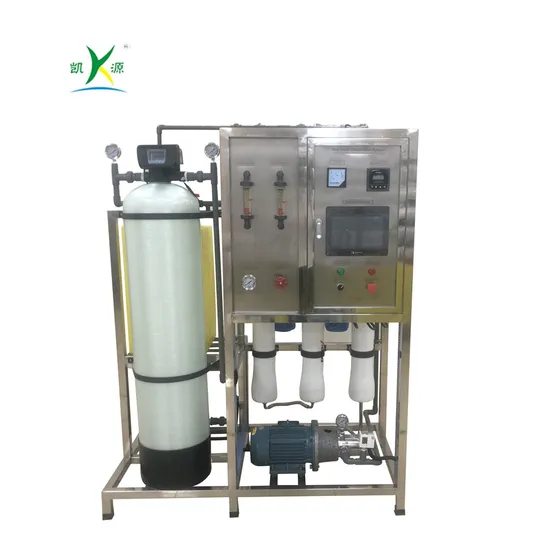

Hot Sale 750L/H Seawater Desalination Plant Salt Pure Water Making Filter Treatment Machine Boat Industrial Drinking Water Purification System Price
Product DescriptionThe seawater desalination machine is used for high salt alkali area and seashore area. Use USA imported reverse osmosis membrane elements, high quality pressure vessels, imported high pressure pump, reasonable pretreatment device is equipped, effectively remove inorganic salts, heavy mental ion, organics, bacteria and virus etc. harmful substances in the water, make the brackish sea water desalinate into drinking pure water that meets WHO standards. It solves the problem of drinking water in area of water shortage. Because different area with different water quality, user should be better provide water quality analysis report, ensureus to design the most reasonable, economic plan so that it reaches the best treatment efficiency.
| 1.Electricity supply:110v-480v, 50hz or 60hz,3 phases |
| 2.Capacity:500L/H or customized from 500L/H to 100Ton/H |
| 3.Membranes Brands:DOW(Dupont) or Toray or Vontron |
| 5.UV sterilizer/Ozone generator, CIP washing system, anti-scale dosing system is for optional |
| Specified configuration(Each part is optional, for reference) |
| Item | Material/Model | Function |
| Raw water pump | Lingxiao/CNP, SUS-316 | Provide pressure for raw water |
| Quartz sand filter | FRP | Get rid of turbidity, suspended matter, colloid, etc. |
| Antis-calant dosing system | SEKO from Italy | Remove Calcium ion(Ca2+) and magnesium ion(Mg2+) of removing hardness from water. |
| Security filter | PVC 1mircon/5mircon | Block impurities greater than 5micron(1micron) |
| High pressure pump | CNP/ SS316 Anti-corrosion | Provide pressure for water into membrane |
| Membrane | Domestic/Vontron / DuPont FilmTec | Remove heavy mental ion, bacterial. Desalination rate is more than 97% |
| Different Water TDS Compare and Usage |
| | Bottle/Sachet water | City/Spring water | Brackish Bore hole water | Sea water |
| Saline/TDS(Mg/L, PPM) | 2-10 | 20-1000 | 2000-20000 | 20000-40000 |
| Domestic cooking, washing,drinking | Yes | Yes/No | No | No |
| irrigation, industry, | Yes | Yes | No | No |
| Ro Material | | SUS-304 | SUS-316 | SUS-316/2507 |
Detailed Photos
Water Pumps---Raw Water Pumps, CIP washing pumps and High Pressure Pumps:1.Brand: We can offer standard CNP brand 2.Material: Can be SUS-304 for fresh water purification, or SUS-316 for salty/brackish water desalination. 3.Name and Function: Raw water pump to provide pressure for pre-treatment part. High pressure pump to provide pressure for Ro membranes. CIP Washing pump for membranes maintenance.Pre-treatment filter is sand filter: The quartz sand filter can remove the suspend solid and low the outlet water turbidity. Material: fiberglass (FRP) FRP material tank, U-PVC pipe, it has a good corrosion resistanceAutomatic control valve: It can automatically complete the fast rinsing and backwashing of filter materials, and then automatically turn to filter (normal operation) by setting the time on the program |
|
PC panel--Anti-rusty steel material control box1--Company name and logo design: customize as your requirements;
2--Conductivity meter: display the conductivity of pure water 3--Flow meter : display dense water and pure water flow.
4--Pressure meter: display inlet and outlet pressure of water inlet RO system.The inner electricity side, we have frequency inverter(if necessary), AC contactors, Thermal relay, Fuse box, Air switch, Indicator light, Knob switch, Power switch, Intermediate relay, Sound and light alarm, electrical miscellaneous items, etc. But if you want PLC control box, please check details as followed.MembraneThe service life is about 2 years. It can remove particle, colloid, organic impurity, heavy metal ion, bacteria and virus from water,and it can also remove more than 97% dissolved salt.
Optional membrane brand : Toray & HYDECANME & Vontron ...
