Cheap Price 365nm Ultraviolet Radiometer UV Integrator Pocket Radiometer Portable UV Energy Meter

Product Description

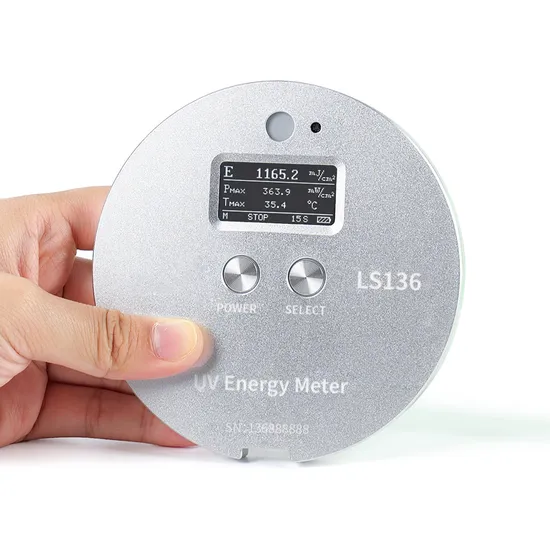

Cheap Price 365nm Ultraviolet Radiometer Uv Integrator Pocket Radiometer Portable Uv Energy Meter Product Parameters Descriptions: LS136 uv integrator is a professional UV testing instrument used to detect UV energy and intensity in high pressure mercury lamps, halogen lamps and other light sources. The uv integrator can be used to measure UV intensity, energy and temperature in various UV curing machines, UV coating machines, exposure machines, dryers, printing machines and other equipment. Adopting disc type design, the body is more slim. Simple operation, equipped with high temperature protection cover, fearless of high temperature environment. High precision ensuring that the uv integrator can pass the test of the authoritative metrology institute. Features: 1. Display of real-time power and temperature, energy, maximum power and maximum temperature. 2. Spectral range of 315nm-400nm, specializing in high-pressure mercury lamps, halogen lamps.
3. Automatic mode, manual mode can be switched, suitable for a variety of testing environments.
4. Only 7.6mm thick, lighter body weight, suitable for narrow spaces.
5. High-temperature protective cover is provided, which uv integrator can be operated in high-temperature environment.
6. Built-in high-precision temperature detector and timer to measure temperature and measurement time.
7. High precision ensuring that it can pass the test of the authoritative metrology institute.
8. 2048 times/second high-speed sampling, provide more accurate data.
Specifications:

Parameter	Value
Spectral range	315nm-400nm, λp = 365nm
Power measuring range	0-2000mW/cm²
Power resolution	0.1mW/cm²
Energy measuring range	0-999999mJ/cm²
Energy measuring accuracy	±10%, ±5% (typical)
Measuring accuracy	±0.5mW/cm² or ±10%H, ±5%
Sampling speed	2048 times/second
Recording period	32 min
Power supply	Rechargeable lithium battery 3.7V@400mAh
Display	128X64 Dot matrix OLED
Dimension	Diameter 102mm* thickness 7.6mm

Product Description Versatile applications The uv pocket radiometer is widely used in UV exposure, UV adhesive curing, UV ink curing, UV digital printing, optical communication, UV 3D printing,etc.
Energy, power and temperature measurement simultaneously Display of real-time power and temperature, energy, maximum power and maximum temperature with cheap uv radiometer price.
Auto mode and manual mode can be switched Auto mode: Automatically triggers and terminates measurements, accurately measuring cure duration and energy values.
Manual mode: Measures energy values of multiple curing light sources.
Ultra-thin design Only 7.6mm thick, lighter body weight, suitable for narrow spaces with cheap uv radiometer price.
Provide high-temperature protective cover High-temperature protective cover is provided, which can be operated in high-temperature environment.
High-precision temperature detector and timer Built-in high-precision temperature detector and timer to measure temperature and measurement time with cheap uv radiometer price.
Pass authoritative metrology institute testing High precision ensuring that the uv radiometer can pass the test of the authoritative metrology institute. Packing List

No.	Description	Quantity	Unit
1	LS136 UV energy meter	1	Set
2	Charging head	1	Pcs
3	charging cable	1	Pcs
4	Heat-resistant cover	1	Pcs
5	Calibration report	1	Pcs
6	Warranty card	1	Pcs
7	User manual	1	Pcs

Company Profile
Packaging & Shipping

Packing	Air Carton /Express Packaging/ Shrink Package
Delivery Terms	EXW, DAP, Express Delivery
Delivery Time	5-10 days in stock
Port	Shenzhen

FAQ 1. Why should the UV energy meter be divided into mercury lamps and UV LED? If both sources are available, do I need to buy 2 UV energy meters?
A.The spectrum of the mercury lamp and the LED light source are different. When measuring, choose the instrument that matches the spectrum of the light source. If the spectrum of the light source is inconsistent with the response spectrum of the instrument, the measured data is not accurate.
B.99% of the UV energy meters on the market are designed for high pressure mercury lamps. They are only suitable for measuring the energy and intensity values of 365nm wavelength. The LED light source has various bands such as 365 nm, 375 nm, 385 nm, 395 nm and 405 nm. For LED light sources, LED-specific UV energy meters are required.
C.If you do not want to buy two UV energy meters, use a LED dedicated UV energy meter to detect the mercury lamp, the test data is still stable but the data will be too large. Except that it can not pass the inspection of the metrology institute, there is no problem with the quality control in the production process. Using a mercury lamp dedicated UV energy meter to measure LED lights, the data will be too small.
2. Can gallium lamps, iron lamps, xenon lamps, etc. be measured?
If you are measuring non-LED type light sources, we recommend using LS120, LS130, LS125+UVA UV energy meters which are suitable for testing mercury and halogen lamps. These instruments are guaranteed to pass the inspection of the National Metrology Institute.

3. Are there any import taxes or customs charges that I need to be aware of if l purchase this and have it shipped here to my country?
Almost all shipping methods supported by Made-in-China are DAP trade terms, which means that buyers need to handle customs clearance and pay custom duties. If you do not want to pay any extra expense or high custom duties before receiving the goods, please contact us before payment to help you find other shipping methods. Appreciate for your understanding.
4 How much customs duty do I need to pay?
Generally speaking, it depends on the import policy set by your country's customs office. The fee is related to the value of the goods and the type of goods. You can consult your country's customs office using the HS code we provide you.
5. The instruments that test UV LED light sources are all calibrated at 395nm. Is the data for testing 365nm LED light sources accurate?
A. The spectral response curve of the instrument we tested for UVA LED light source is very stable between 365nm and 405nm. No matter what band the LED is, there is no problem. We calibrate the machine at 395nm LED light source.
B. The UV energy meter for testing LED light sources does not have relevant national standards, so the accuracy of the data cannot be measured by national standards. As a professional UV energy meter supplier, we has established strict factory inspection specifications to ensure that the data can meet the manufacturer's standard when detecting the 365-405nm LED light source.
Note
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.
2. Please allow 1-2cm measuring deviation due to manual measurement.

---
