CNC Cutting Machine for Furniture Production

Product Description

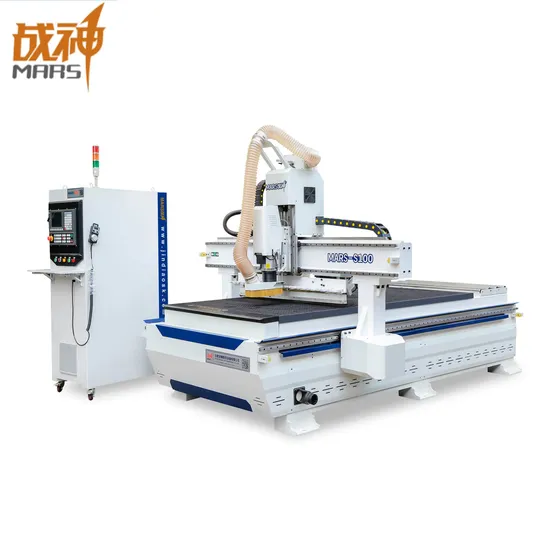

S100 MARS ATC Wood CNC Machine w tool change spindle Wood Router
Keypoints: 20 years experience of production
ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
Three Brands: Mars, Golden Eagle, Boiro
Technicist who go abroad to offer after-sale service
Technical Parameters:

Model	S100
Working Stoke	1230*2450*200~300mm
Body Structure	Thick-walled steel tube welded
Spindle Power	HSD 9KW air cooling spindle
Tool Magazine	12 linear tool magazine
Spindle Speed	0 ~ 24000 rpm/min
Control System	Syntec/ Osai/Delta
Drive System	Yaskawa/ Delta servo motor
Lubrication System	Automatic
Transmission	XY axis rack and pinion, Z axis ball screw
Guide Rail	Taiwan Hiwin linear rail
Vacuum Pump	5.5KW
Max Travelling Speed	80m/min
Max Processing Speed	30m/min

Functions: The functions of this machine include cutting,milling,drilling,slotting,chamfering,punching, engraving & other auxiliary processing.
Standard Accessories: Applicable Scope: Cabinet doors, wooden doors, solid wood, panels, doors, windows, tables, chairs, folding screens, waved plate, large wall hangings,
advertising boards, sign makings
Applicable Materials: Artificial stone, wood, bamboo, marble, organic board, color plates and other materials. Samples: Similar Products:

---
