Xa7140 Bed-Type Universal Milling Machine Price

Product Description

Product Description

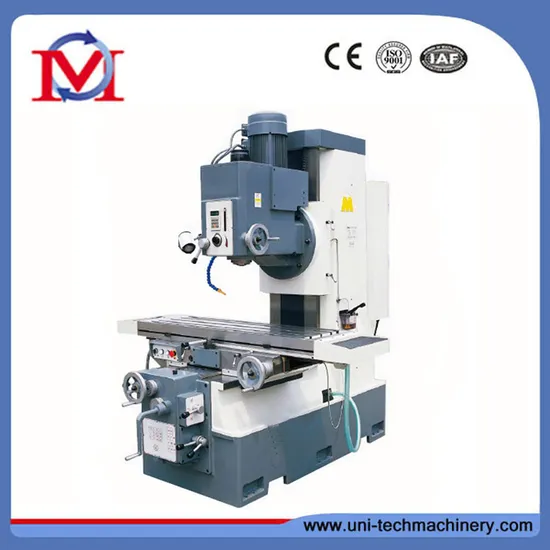

XA7140 Bed-Type Universal Milling Machine price
XA7140 is a Chinese bed-type conventional metal milling machine with the ISO50 spindle, sells very well in many countries, with the following main features:
1.Solid, grey cast iron construction allows heavy table load
2.Large flat guide guarantees stability at heavy milling
3.Handwheel allows feed (100 mm) of oversize spindle
4.Polished table, supported well by wide saddle
5.Wide speed range (20 - 1800 rpm) feat. high torque and spindle brake
6.XA7140 Chinese bed-type conventional metal milling machine with Stepless speed adjustment comes standard
7.Inductive hardened and polished guide ways
8.Reinforced saddle in robust box construction
9.Column and machine stand are solidly designed SPECIFICATION
Main specification

XA7140 Chinese bed-type conventional metal milling machine
Specifications	Units	XA7140
Table size	mm	1400×400
Table travel	mm	800×400
Number/Width/Distance of T-slot	mm	3-18-100
Max. load of table	kg	800
Distance from spindle axis to column guideway	mm	520
Distance from spindle nose to table surface	mm	150-650
Spindle taper		ISO50
Quill travel	mm	105
Spindle speed range (infintely variable speed)	rpm	18-1800
Overall dimension	mm	2290×1840×2120
Spindle motor power	kW	7.5
Machine weight	kg	3860

Standard accessoires :
1.Drawbar M 10 / M 12 / M 16 / M 24
2.WORK light
3.Coolant device
4.Taper shell end mill holder ISO 50 / 40 mm
5.Adapter ISO 50 / MT 4
6.Central lubrication
7.Telescope cover in z-axis
8.Stepless speed adjustment
9.Anchor bolts
10.Universal protective device
11.Tools

Optional accessories:
1.Mill chuck set ER 40, ISO 50, 3 - 25 mm, 16 pcs.
2.Horizontal & vertical rotary table HV 12 - 300 mm
3.Tiltable rotary table TSK 320
4.Semi-universal dividing head BS-1
5.Deluxe clamping kit set 58 pcs., 18 mm, M 16
6.Two-parts milling vise MS 200
7.Hydro machine vise AH 200 with swivel base
8.Hydro machine vice VH 200 with swivel base
Detailed Photos

XA7140 Bed-Type Universal Milling Machine price
We will supply the following documents after the shipment:
1) Bill of Lading
2) Commercial invoice
3) Packing list
4) Certificate of origin
5) One paper catalogue of our company
We also would like to let you know our warranty about our XA7140 Chinese bed-type conventional metal milling machine as following:

What about the spare part if the machine break down?
==about the machine break down, normally our policy will be as the under way
1) Our quality guarantee time is 12 months since the machine on board
2) During this period, if the machine break down owing our machine itself quality problem, we will prepare the spare parts and send to you by free within 5 days. all these will be by free.
3) If the break down is caused by the mis operation, we of course will supply you the spare parts, but we have to charge you the costs prices.

---
