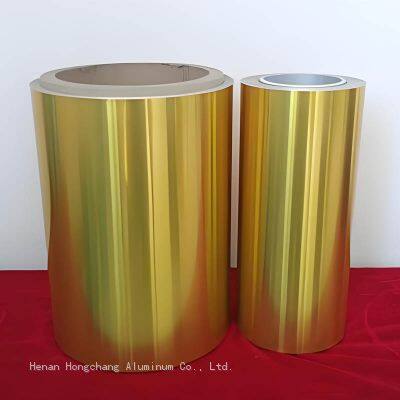

What is Hydrophilic Aluminum Foil?Hydrophilic aluminum foil is aluminum foil coated with a hydrophilic layer. Through a special treatment process, a hydrophilic film is applied to the surface, allowing condensed water to spread quickly rather than forming water droplets. This increases the heat exchange area, accelerates cooling and heating, and effectively prevents water droplets from obstructing airflow, which can cause noise.
The water droplet contact angle on the surface of ordinary aluminum foil is above 70 degrees, while on hydrophilic aluminum foil, it is below 35 degrees.
Hydrophilic aluminum foil is widely used in household air conditioners, refrigerators, and other refrigeration equipment, as well as in automotive air conditioners and radiators. The 3102, 8011, 1100, and 1200 foil materials we produce meet both domestic and international standards. Our products are exported worldwide, offered at competitive prices, and backed by professional after-sales support.
Advantages of Hydrophilic Aluminum Foil:Improved Heat Exchange Efficiency: The hydrophilic surface forms a thin water film instead of water droplets, reducing airflow resistance and increasing heat exchange efficiency by approximately 5%.
Noise Reduction: Since condensation does not form water droplets, dripping noises are minimized, making air conditioner operation quieter.
Corrosion and Mold Resistance: The surface treatment enhances corrosion and mold resistance, extending the lifespan of heat exchangers and meeting environmental standards.
Better Air Quality: Helps reduce dust and mold accumulation, improving indoor air quality.
Energy Savings: Reduces power consumption while maintaining the same cooling capacity.
Hydrophilic foil specifications:
| Alloy | 1100, 1200, 3102, 8011 |
| Temper | H22/H24/H26/OH |
| Thickness | 0.08-0.2mm |
| Thickness tolerance | +/- 0.005mm |
| Width | 100-1600mm |
| Width tolerance | +/- 0.5mm |
| Length | C |
| ID | 76/152/200mm |
| OD | 300-1200mm |
| Color | blue/gold/black |
Packing Details: Export standard packing, bundled or as required.
The internal dimensions of the container are as follows:
20ft GP: 5.8m (L) x 2.13m (W) x 2.18m (H)
40ft GP: 11.8m (L) x 2.13m (W) x 2.18m (H)
40ft HG: 11.8m (L) x 2.13m (W) x 2.72m (H)
>>
