Farm Machinery Self-Propelled, Self-Loading Mixer for Feeding with Capacity 12m3-30m3

Product Description

Farm Machinery Self-Propelled, Self-Loading Mixer For Feeding With Capacity 12m3-30m3
Product Description

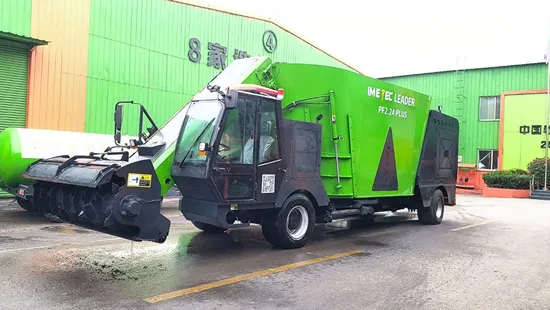

The Main Fountion of Self-propelled TMR Feed Mixer
1. One machine with four machines: replaces forklifts, tractors, reclaimers, and spreaders, saving manpower, effort, and worry
2. Main components are imported (axles, pumps, valves, motors), with stable performance
3. American standard Cummins or Weichai engineering-specific engines, continuous and uninterrupted operation
4. The whole machine is hydrostatically driven, and maintenance is simple
5. The machine operation can be viewed remotely in real time, and the machine can be started and stopped
6. Taishan Cloud Butler System, full life cycle supervision
7. The cab has air conditioning, heating and cooling air conditioning, audio and video
8. Luxury suspension seat
9. Single handle operating system
10. One-button high and low speed selection
11. Reversing radar, full vehicle monitoring, 360-degree imaging
Detailed Photos
One anger Two angers Three angers Four angers
Product Parameters

Item	Specification	Model
Self-propelled TMR Feed Mixer	8m³	8
	10m³	10
	12m³	12
	14m³	14
	16m³	16
	18m³	18
	20m³	20
	24m³	24
	30m³	30

Product features
1. Engine: American standard Cummins 119kw, 160 horsepower, strong power, low energy consumption, low noise. The whole machine adopts the fully imported Danfoss electronic control hydraulic system.
2. The axle adopts the imported Kangmaier with advantages such as large torque, stable walking, small turning radius, and large bearing capacity. High and low speeds can be switched at will, with a speed of 2-28 kilometers per hour, which makes it easier and saves time when working and transferring. The auger reducer adopts the imported Kangmaier gearbox with large torque and stable output.
3. The axle and the frame are connected with spring plates for shock absorption, which can be adjusted and balanced independently during vehicle driving.
4. With the airbag seat, the driving operator can be more comfortable at work.
5. The tire adopts: 385/55R19.5 -16PR vacuum steel wire wide tire, which is more stable and has strong passability.
6. All feeding and discharging are transmitted by belts, making material feeding and discharging more accurate and uniform. The belt material is PVC material, which is more corrosion-resistant.
7. Main frame: High carbon steel plate is assembled and welded, with good flexibility and strong bearing capacity.
8. The tank body is made of Q355 manganese plate or nm400 wear-resistant steel, and the tank body surface is sandblasted
9. The tank body is formed by bending and welding two plates, without other interfaces.
10. The unique tank resistance groove design is bent and formed by CNC bending machine, which makes mixing and cutting more wear-resistant and faster.
11 The agitator material is pressed with Q355 manganese plate NM400 wear-resistant plate, and high wear-resistant steel edges are welded on the edge of the agitator blade to make the mixing more wear-resistant and uniform, and the turning effect is better.
12 The front material reclaiming drum is welded with stainless steel, which has the advantages of lightness, corrosion resistance, and long service life.
13 Fully open design, all accessories are installed with openable protective covers, which are convenient and quick to maintain.
Company Profile
Shandong IMETEC Intelligent Equipment Group Co.,Ltd is a national high-tech enterprise specializing in the research, development and export of intelligent livestock equipment, we have been focusing on intelligent ranch equipment for 25 years.We can supply livstock equipment such as TMR feed mixer, robot feed pusher, manure collector, leftover collecting machine, manure spreader, feed spreader sillage loader, feeder, feed pusher, manure collector, cow headlock and free stall, cow water trough, calf feeder, bed looser, etc 8 series and 200 kinds products. Among them 57 products in four categories have been included in the national agricultural machinery subsidy promotion catalog.It is sold well in more than 20 countries and regions at home and abroad, and is the top choice supplier of many listed dairy companies such as Yili and Mengniu.

---
