3000W 4000W 6000W 8000W Dxtech with Whole Protective Covered Automatic Metal Plate Stainless Steel Carbon Steel Aluminum Fiber Laser Cutting Machine

Product Description

Product Description
3000w 4000w 6000w 8000w Dxtech With Whole Protective Covered Automatic Metal Plate Stainless Steel Carbon Steel AluminumFiber Laser Cutting Machine

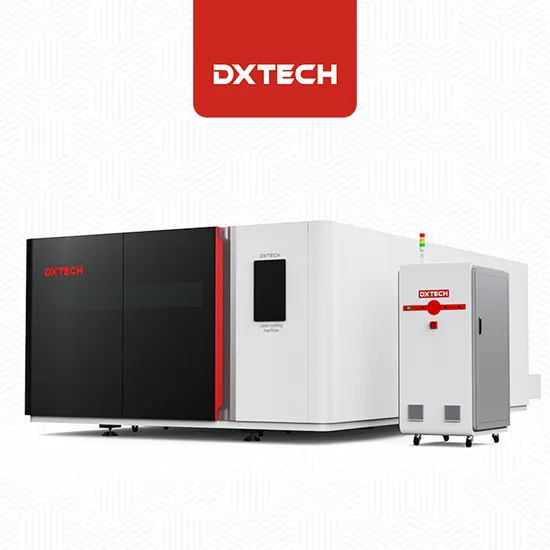

DXTECH all cover fiber laser cutting machine with exchange table adopts fiber laser with domestic advanced technology, and is equipped with imported high-precision gear rack, linear guide and other efficient transmission mechanisms, and is a precision CNC fiber laser cutting machine integrating laser cutting, precision machinery. It is a high-tech product integrating numerical control technology and other disciplines. The machine has good dynamic performance and fast servo response. It is equipped with medium power fiber laser to achieve high cutting efficiency.
Feature
--
(1)With the fully enclosed protective cover, the smoke and dust can be prevented, which is more environmentally friendly.
(2)With the 15s exchange platform adopted, this laser cutter can achieve fast loading and unloading, which greatly improves the processing efficiency.
(3)With the lightweight aviation aluminum beam adopted, the machine greatly improves the moving speed, and the processing precision is guaranteed.
(4)Simple operating system, to realize rapid cutting on the shape what you want on the metal material, like carbon steel ,stainless steel, cooper, aluminum, and galvanized sheet.
Technical Parameters

Model	DXTECH-1530S	DXTECH-1540S	DXTECH-2040S
Working area (mm)	1500*3000mm	1500*4000mm	2000*4000mm
Positioning accuracy	±0.03mm	±0.03mm	±0.03mm
Repositioning accuracy	±0.02mm	±0.02mm	±0.02mm
Maximum speed	100M/min	100M/min	100M/min
Max. acceleration	1.2G	1.2G	1.2G
Laser power	1kw - 4kw	1kw - 4kw	1kw - 4kw
Laser	Multiple options	Multiple options	Multiple options
X-axis motor power	850W	850W	850W
Y-axis motor power	1300W*2	1300W*2	1300W*2
Z-axis motor power	400W	400W	400W

Cutting Sample

Product Category

Feedback
Company Profile
FAQ
01What is fiber laser cutting machine?
A:Fiber laser is a special type of solid state laser. Generally, fiber lasers are optically pumped.This is done by coupling the radiation of diode laseers or other fiber lasers into the cladding or the core itself in a direction parallel to the fiber core. In many cases, double clad fibers are used in order to achieve higher output power. What's material can fiber laser cut? All kinds of metal, such as Stainless Steel,Carbon Steel, Mild Steel, Galvanized Steel, Aluminum,
copper, etc.

02What's the max. cutting thickness?
A:Cutting thickness is related to laser power.Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass and other high reflectionsheet metal.

03Do you have CE document and other documents for customs clearance?
A:Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial
Invoice/Sales contract for customs clearance.

04 Payment terms?
A: trade assurance/TT/West Union/Payple/LC/Cash and so on.

05 I don't know how to use after i receive Or i have problem during use, how to do?
A:We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.

06 I don't know which one is suitable for me?
A:just tell us below information1) Max work size:choose most suitable model.2) Materials and Cutting thickness:Power of laser generator.3) Business industries:We sell a lot and give advice on this business line.also provide Door service if you need.

---
