Customized PP/Pet/HDPE/LDPE/PVC/PE Plastic Window Profile Pipe Bottles Crushing Crusher

Product Description

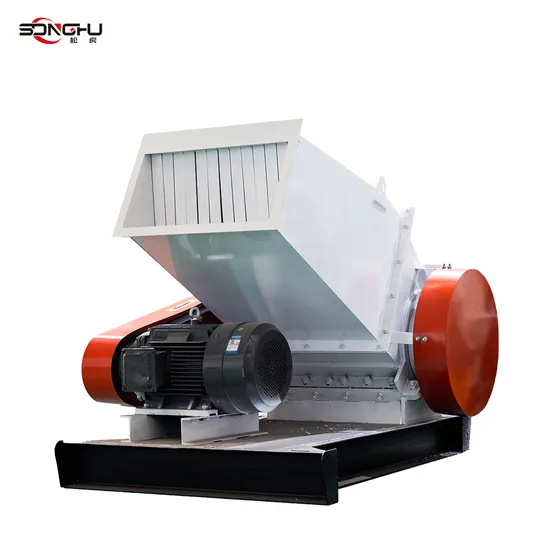

SHXR PVC Crusher drives the moving blade frame to rotate at high speed through the motor, and forms a shearing trend of relative movement with the fixed blade during the high-speed rotation of the moving blade. The shearing formed between the moving blade and the fixed blade is used to crush the large products. After crushing, the pieces are formed into 10-22mm pieces, and the size of the pieces is filtered and output through the screen.

Model	SHXR-650	SHXR-1000	SHXR-1280
Width of Feeding Port	650mm	1000mm	1280mm
Spindle speed	3200rpm	3500rpm	3700rpm
Main motor power	22/30/37/45/55kw	30/37/45/55kw	37/45/55kw
Fixed Blades	4Pcs	6Pcs	8Pcs
Movding Baldes	10Pcs	15Pcs	20Pcs
Output	500-1500kg/hr	500-1500kg/hr	1000-2000kg/hr
Crushed Particle size	10-20mm
Weight	1000kg	1100kg	1500kg
Size	650*450mm	1000*450mm	1280*450mm

1. Specialized blades for crushing all kinds of hard plastic, like PVC WPC plastic steel, resin tiles, wall panels, Profiles, Gussets, Pipes, various special-shaped materials.
2. Steel body and clamping blade prevent the machine from cracking
3. Stepped blades increase shearing strength and crushing efficiency
4. Heavy-duty bearings, large inertial wheel and strong crushing ability;
5. Easy disassemble design, simple and easy to clean and maintain;
6. Two-layer sound-insulated hopper to insulate noise;
7. High-speed quality cutter, sharp edge, durable in operation;
8. Interlock power protection to ensure operational safety.

All Hard Plastic Materials	Plastic steel	Gusset plate	Eco-wood
	Corner line	Stone plastic line	PVC profile
	Wallboard	Pipe	Architectural template
	Foam board	SPC	WPC floor
	Resin tile	ASA Synthetic Resin Roor Tile	Wood veneer
	Carbon crystal plate	Foam wall panels	Stone plastic wall panel

Wuxi Songhu Xinrui Machinery Co., Ltd. is a professional manufacturer of PE mills and PVC crusher equipment. We have an excellent R&D team and technicians, which lays the foundation for producing high-quality machines.
Established in 2007, Songhu Xinrui has been committed to providing the world with the best quality plastic PE grinding and PVC crushing machinery. With a top-notch team and the strictest manufacturing standards, Songhu Xinrui has become a leader in domestic plastic machinery manufacturing. Our products include PE grinding machines, PVC crushing machines, and other plastic recycling machinery, suitable for sheets, small pipes, plastic steel, resin tiles, wall panels, buckle plates, pipes, foam boards, footings, and many other materials. Songhu Xinrui's products have been exported to more than 50 countries and regions worldwide.
Q: Are you a machinery factory or a trading company?
A: We have our factory, which allows us to strictly guarantee product quality and lead times.
Q: If we have a very special request for the production line, can you help with the design?
A: Yes, our experienced mechanical designers can provide customized designs.
Q: Do you provide material testing services?
A: Yes, we offer testing services for our machines. An additional testing fee will apply, depending on the costs (electricity, labor). However, if you purchase with us, the testing fee will be deducted from the machine's purchase cost.
Q: How can I ensure the machine runs well in my plant?
A: We conduct a home commissioning in our factory for your inspection. If needed, we can send engineers for installation assistance and staff training, and to address any issues.
Q: How can I get a quote efficiently?
A: Click the 'Send an Inquiry' button at the bottom of the page or 'Chat Now' on the right side. Leave a message with details of your final products (including pictures and size drawings) and capacity requirements. We will respond within 12 hours.
Q: How can we visit your company and machines?
A: Our factory is located in Wuxi, Jiangsu Province, China.
Q: What are the payment methods?
A: We accept T/T, L/C, Western Union, etc.

---
