Ss400 S235jr S275jr Q355b Q235B Carbon Galvanized Gi Slotted L Shaped Equal Unequal Iron Ms Steel Angle

Product Description

Product DescriptionAngle steel can be used to form various load-bearing components according to different structural requirements, and can also be used as a connecting element between components. Widely used in various building and engineering structures, such as beams, bridges, transmission towers, lifting and transportation machinery, ships, industrial furnaces, reaction towers, container racks, cable trench supports, power piping, busbar support installation, and warehouse shelves.Angle steel belongs to the carbon structural steel used for construction, which is a simple section steel. It is mainly used for metal components and the framework of factory buildings. Good weldability, plastic deformation performance, and certain mechanical strength are required during use. The raw material for producing angle steel billets is low-carbon square steel billets, and the finished angle steel is delivered in hot-rolled, normalized or hot-rolled state.

Technical parameters: 1) Material: Q235B , Q355B, SS400 ,SS540, S235JR. A36 ,S235JR S355JR etc.
2) Usage: structure construction and electronic tower building
3) Weight tolarance: -1% TO -10%
4) Size tolarance :
ANGLE STEEL SIZE TOLARANCE (MM)
SIZE cm	WIDTH b/mm	THICKNESS d/mm	LENGTH /m
2-5.6	+/-0.8	+/-0.4	4-12
6.3-9	+/-1.2	+/-0.6	4-12
10-14	+/-1.8	+/-0.7	4-12
16-20	+/-2.5	+/-1.0	4-12
5) Payment terms: TT or LC
6) Delivery date: within 7~15 days after receiving the LC or TT prepay
7) Packing: Export package
8) Inspection: accept the third party inspection

Standards	ASTM,AISI,SUS,JIS,DIN,EN,BS,GB
Specification	size	20*20*3mm~200*200*24mm
	Length	6m,5.8m,9m,12m,or as your required.
Trade Terms	Price Term	EX-Work,FOB,CFR,CIF
	Payment Term	T/T, L/C
Package	Standard export seaworthy package or as required.
Delivery Time	Normally according to the order quantity,standard size in stock.
Export to	Ireland,Singapore,Indonesia,Ukraine,Saudi Arabia,Spain,Canada,USA,Brazil, Thailand,Korea,Italy,India,Egypt,Oman,Malaysia,Kuwait,Canada, Viet Nam, Peru,Mexico,Dubai, Russia,etc
Application	petroleum,chemical industry,electric power,boiler,high temperature resistant, low temperature resistant, corrosion resistant
Container size	20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
	40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
	40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High)
Contacts	If you have any questions, pls don't hesitate to contact me.

Products SpecificationThe angle bar sizes with GB standard

Equal angle bar (A*T)
Size	Theoretical weight	Size	Theoretical weight	Size	Theoretical weight
(mm)	(kg/m)	(mm)	(kg/m)	(mm)	(kg/m)
25*3	1.124	75*7	7.976	110*14	22.809
25*4	1.459	75*8	9.03	125*8	15.504
30*3	1.373	75*10	11.089	125*10	19.133
30*4	1.786	80*6	7.376	125*12	22.696
40*3	1.852	80*7	8.525	125*14	26.193
40*4	2.422	80*8	9.658	140*10	21.488
40*5	2.976	80*10	11.874	140*12	25.522
50*4	3.059	90*6	8.35	140*14	29.49
50*5	3.77	90*7	9.658	140*16	35.393
50*6	4.465	90*8	10.946	160*10	24.729
60*5	4.52	90*10	13.476	160*12	29.391
60*6	5.42	90*12	15.94	160*14	33.987
63*5	4.822	100*6	9.366	160*16	38.518
63*6	5.721	100*7	10.83	180*12	33.159
63*8	7.469	100*8	12.276	180*14	38.518
63*10	9.151	100*10	15.12	180*16	43.542
70*5	5.397	100*12	20.611	180*18	48.634
70*6	6.406	100*16	23.257	200*14	42.894
70*7	7.398	110*7	11.928	200*16	48.68
70*8	8.373	110*8	13.532	200*18	54.401
75*5	5.818	110*10	16.69	200*20	60.056
75*6	6.905	110*12	19.782
Unequal angle(A*T)
Size	Theoretical weight	Size	Theoretical weight	Size	Theoretical weight
(mm)	(kg/m)	(mm)	(kg/m)	(mm)	(kg/m)
25*16*3	0.912	75*50*8	7.431	125*80*7	11.066
32*20*3	1.171	75*50*10	9.098	125*80*8	12.551
32*20*4	1.522	80*50*5	5.005	125*80*10	15.474
40*25*3	1.484	80*50*6	5.935	125*80*12	18.33
40*25*4	1.936	80*50*7	6.848	140*90*8	14.1
45*28*3	1.687	80*50*8	7.745	140*90*10	17.475
45*28*4	2.203	90*56*5	5.661	140*90*12	20.724
50*32*3	1.908	90*56*6	6.717	140*90*14	23.908
50*32*4	2.494	90*56*8	8.779	160*100*10	19.872
56*36*3	2.153	100*63*7	8.722	160*100*14	27.274
56*36*4	2.818	100*63*8	9.878	160*100*16	30.853
56*396*5	3.466	100*63*10	12.142	180*110*10	22.273
63*40*4	3.185	100*80*6	8.35	180*110*12	26.464
63*40*5	3.92	100*80*7	9.656	180*110*14	30.589
63*40*6	4.638	100*80*8	10.946	180*110*16	34.649
70*45*5	4.403	100*80*10	13.476	200*125*12	29.761
70*45*6	5.218	110*70*6	8.35	200*125*14	34.436
70*45*7	6.011	110*70*7	9.656	200*125*16	39.045
75*50*5	4.808	110*70*8	10.946	200*125*18	43.588
75*50*6	5.699	110*70*10	13.476

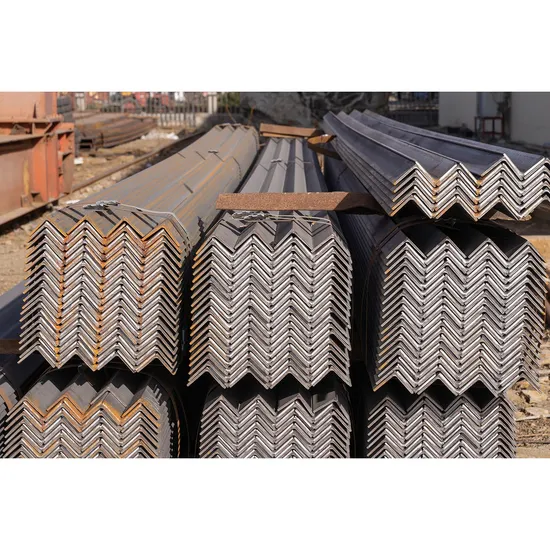

Detailed Photos
Packaging & Shipping
Company ProfileOur Company & Contact Details
Liaocheng Huajian Steel Co.,Ltd is located in Liaocheng, Shandong Province, which is known as "the Water City of Jiangbei", and our company was established in the year 2012. We are a modern private enterprises which are specialized in processing and exporting steel materials in China and win high reputations from our customers.Our main items are:
1. Steel plate, steel sheet, wear resistance steel plate, high strength steel plate, HRC MS plate, checkered steel plate, alloy steel plate /coil etc..
2. Cold rolled steel coil/sheet,galvanized steel coil/sheet, galvalume steel coil/ sheet, prepainted steel coil/ sheet,corrugated roofing steel sheet
3. steel profiles, such as, steel angle section, H beams, I beams, Channel section etc..
4. Carbon steel pipe, seamless steel pipe, welded steel pipe,spiral welded pipe, galvanized steel round and square tubes, and stainless steel etc.
Hot sale products
FAQ
FAQ1) why you chose us ?Because we have large stocks and we have long term cooperative factories. We can get the lowest ex-factory prices. The price are quite reasonable and it is lower than our commercial peers. Also, we can guarantee the quality of our products.2) Our minimum order quantity:15 Metric Tons3) How about the Delivery Time?The steel pipe will be produced since we getting your deposit by T/T or original L/C, and delivery to the port of loading within 25~30 days. For normal size, some stocks in our factory now, we can shipment within 7~10 days after receive the deposit.4) What kind of payment does your company support?T/T, 100% L/C at sight.5) Do you charge for the samples?No, we provide samples free, you pay for the freight charge.6) Main market:Mid East South America South Asia Africa Southeast Asia Northern Europe Western Europe etc.If you are interested in our products, please contact with me freely !

---
