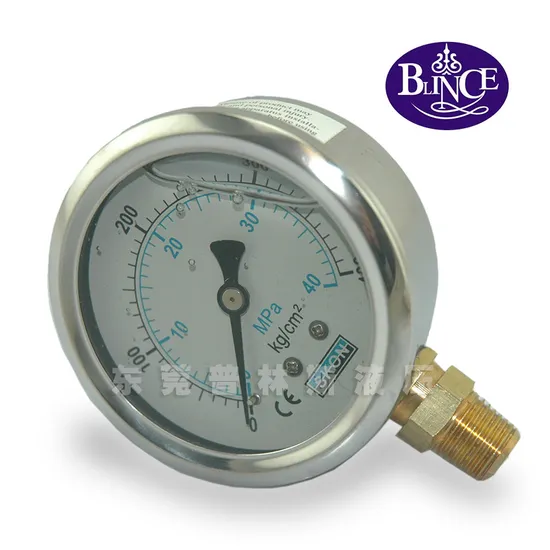

63mm (2.5") Oil Filled Pressure Gauge Yn63c

Product Description

BRIEF INTRODUCTION:
Oill filled pressure gauge is filled with damping liquid good performance of shock proof.This sort of maters is suitable for locations where the pressure of medium changes intensely and pressure shock proof exists, or pressure is released suddenly in the course of manufacturing, or working environment shock largely. The meter can measure average of gas and liqu id mediums.Thus damage to meter induced byintensive fluctuation and environmental shock can be over come smoothly and accuracy of freading is ensured.

APPLICATIONS:
Process industry, Chemical/petro-chemical, Power stations, etc.

DESCRIPTION:

Nominal Size :	1.5"(40mm) , 2.0"(50mm), 2.5"(63mm), 3.0"(75mm) ,4.0"(100mm),
Pressure Range :	-30"-0-15000psi
Accuracy :	±1.0%, ±1.6%, ±2.5%
Working Temperature:	-20°c~70°c
Case:	Stainless steel
Bezel :	Stainless steel
Bourdon tube :	Phosphor bronze OR Stainless steel ≤ 60 bar: C-type > 60 bar: Helical type
Connection:	Brass Or Stainless steel
Movement:	Brass Or Stainless steel
Dial:	Aluminium
Pointer:	Aluminium ,black
Window:	Glass Or Plastic
Thread:	1/8",1/4", 3/8",1/2", PT,BSP,NPT etc.
Fill:	Glycerine(standard) Silicone(optional)
Gaskets/Filling cap:	Neoprene Or Silica gel

OPTION:
1. With red mark adjustable pointer ,
2. With othe unit according requirement, such as bar,psi,kg/cm2 in dial
3. With rubber

ORDERING INFORMATION:
Model / Nominal size / Scale range / Connection size / Options
