Magnetic Drive Gear Pump Magnetic Drive Gear Pump

US$279.10 1 Piece (MOQ)

Basic Info.

Model NO.
M0.60S57BL120WW
Max.Head
30-50m
Max.Capacity
100-200 L/min
Driving Type
Magnetic
Material
Stainless Steel
Structure
Gear Pump
Assembly
Liquid Pumps
Power
Electric
Start Up
Electric Pump
Type
Positive-Displacement Pump
Application
Oil Transfer Pump, Chemical Pump
Industry
Pharmaceutical Pump
Media
Fluid
Performance
Automatic Pump
Theory
Electromagnetic Pump
Motor Power
120 W
Pressure
0 - 20 Bar
Rated Current
6.7 a
Imp&Exp Size
G1/8
Viscosity
0.2-1500 Cps
Ambient Temperature
-40ºC - 110ºC
Speed Rpm
500-4500 Rpm
Flow Rate
10.8 - 162 L/H
Working System
Continuous or Intermittent Operation
Pump Body
304/316L
Gear
Peek and Shaft 304/316L
Transport Package
Standard Export Carton or OEM Packing
Specification
2.40 KGS
Trademark
Macxi
Origin
Suzhou City, Jiangsu Province, China
HS Code
8413609090
Production Capacity
3000 PCS/Month

Product Description

Product Model Description
Product Instruction

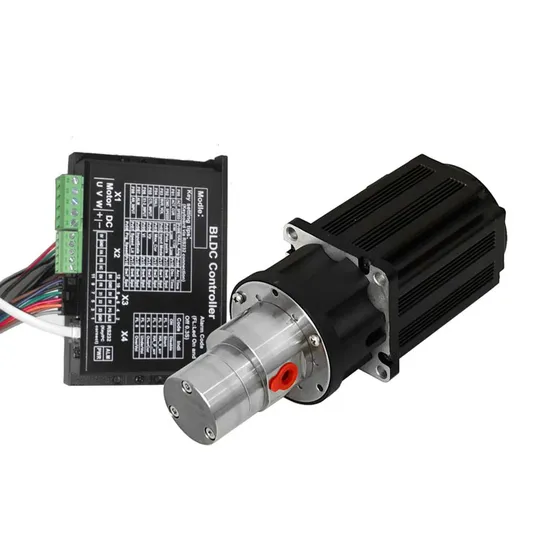

The brushless DC motor is used as the power driving gear pump. The brushless motor driver is configured to realize the motor function control. It has the functions of speed measurement, speed adjustment, forward and reverse rotation. It can be connected with the upper computer to realize intelligent control. It is especially suitable for the workplace with frequent start and stop, such as liquid filling. Step motor or servo motor can be selected as driving power.
Attentions:
1.400 Mesh filter shall be installed at the inlet of gear pump.
2.Before using, squeeze in a small amount of medium to lubricate the gear from the gear pump inlet.
Product Size:
Product Parameters:
Remark: The value in this table is for reference only.
Product Characteristics:
Test Medium: Water
1.Smooth transmission, no pulse, accurate measurement;
2.Use magnetic drive structure, static seal, truly achieve zero leakage;
3.Diversified drive, wide application in the industry, complete models;
4.High efficiency and energy saving, easy maintenance, low installation cost and long service life.
Attentions:
It cannot be used to transport fluids with hard particles;
Filter to be installed at inlet.
Remarks:
OEM service are avaiable according to your request.
The specifications are only for reference, for details checking, please feel free to contact us.
Applications:
Industrial machinery and equipment Water treatment Food and cosmetics
Inkjet printing/painting Mask making Food and Beverage filling
Oil transportation Booster pressure Filling of perfume cosmetics
Sand mill/Grinding Circulating cooling Quantitative Transport
