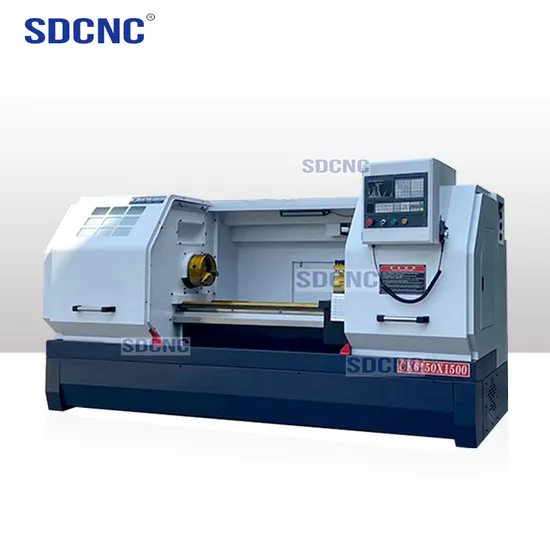

Ck6150 High Speed High-Quality Precision Horizontal Flat Metal CNC Lathe

Product Description

CNC Lathe Features: 1,Cheap Small Low Cost CNC Lathe Machine For Sale CK6150 is a high-speed, high precision, high reliability of
CNC machine tools. Bed, bed, bed and other major components are made of high-strength materials from casting,
to ensure long-term use of the stability of the machine.
2, Cheap Small Low Cost CNC Lathe Machine For Sale CK6150 the use of flat bed structure, high-grade rail
quenching, and paste plastic precision scraping research, the machine location of high precision, chip smooth,
suitable for high-precision machining.
3, Cheap Small Low Cost CNC Lathe Machine For Sale CK6150 with high precision and high rigidity spindle,
variable frequency spindle motor. Spindle in the constant temperature indoor assembly, assembled after 72 hours
of continuous running, the machine after 72 hours of continuous trial run to ensure high-speed high-precision
performance and reliable.
4, Cheap Small Low Cost CNC Lathe Machine For Sale CK6150 the choice of 4-station vertical electric knife way,
tool change speed, high positioning accuracy.
5, Cheap Small Low Cost CNC Lathe Machine For Sale CK6150 X, Z direction of the feed using C3-class precision
ball screw, servo motor through a large torque low inertia imported elastic coupling and screw lead, screw support
with pre-tension structure, to eliminate the transmission backlash and advance The use of advanced centralized
automatic lubrication device, timing, quantitative automatic intermittent lubrication, stable and reliable operation.
The use of advanced automatic lubrication equipment, timing, quantitative automatic intermittent lubrication, stable
and reliable.
6, Cheap Small Low Cost CNC Lathe Machine For Sale CK6150 protection with full protection design, pleasant,
beautiful and unique, waterproof and reliable, easy to maintain. Product Parameters

Model	CK6150
Max swing over bed	500mm
Max swing over cross slide	280mm
Max processing lenght	750/1000/1500mm
X/Z axis travel	X:300 Z:750/1000/1500
Spindle transmission type	Mechanical three gear speed
Spindle speed step	In gear variable speed
Spindle speed	L :70-560 H:200-1600
Spindle nose	C6
Spindle bore	52/82mm
Spindle taper	MT6
Spindle motor	7.5kw
Chuck size	250mm
Ball screw dia and pitch	2506/4008
X/Z axis feed motor torque	X:5.5Nm Z:7.5Nm
X/Z rapid traverse	X:6mm/min Z:8mm/min
X/Z axis repeatabilty	+/-0.005mm
Processing accuracy	IT6-IT7
Workpiece surface roughness	Ral.6
Tailstock quill dia	75mm
Quill travel	140mm
Quill taper	MT5
Tool post type	4-position electric turret
Cutting tool size	25x25mm
Guide form	One shan one flat
Total power capacity	12KVA
Machine dimension	2500x1500x1690mm
N weight	2000kg

---
