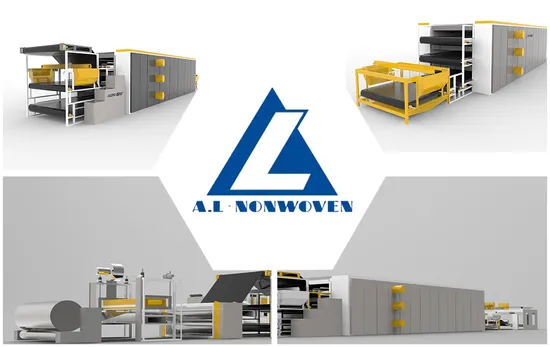

Pet a. L Thermal Bonded Waddings Oven Nonwoven Production Line

Product Description

Pet A.L Thermal Bonded Waddings Oven Nonwoven Production Line Product Description
Working process: Bale Opener → Pre-opener → Main-opener → Cotton feeder → Cylinder Doff Crading machine → Cross lapper→ Oven machine/Needle punching → Ironing machine → Automatic cutting and winding machine
Product Parameters

Machine Size	Gsm	Capacity	Thickness
1600mm	max5000	150kg/h	Max12cm
2400mm	max5000	250kg/h	Max12cm
3200mm	max5000	350kg/h	Max12cm

Detailed Photos
Bale Opener:
Width:1100mm 1200mm 1300mm 1400mm Function: Open the fiber and weigh fiber electronically,it can be combined with sveral units together to mix different type of fibers.

Carding Machine:
Width:1850mm,2000mm,2200mm,2500mm Function:It is disigned with single cylinder or double cylinder and double doff,fiber is sent from front cylinder to middle doff and main cylinder through rollers,each cylinder have 4-5 sets of carding rollers,after many times of carding than feed to the curtain on the cross lapper.
Cross Lapper Machine:
Feeding width: 1700mm-2700mm Output width: 1900mm-9000mm Feeding speed: 10m/min-50m/min Output speed: 1m/min-10m/min Function:After carding,fiber net is sent to double-belts cross lapper through the non-skid curtain,it will be layered on the down-side curtain,than send to next equipment by adjustable moving curtain.
Oven:
Length:6000mm
working width:3200mm
working temperature:<220 ºC
working speed:1-18m/min
Function:set the fiber web or half-ready nonwoven fabric layer.hot air reclying system has sucking and blowing both way,with 2 blower in sperate areas for different temperature controling.

Main Features
1) Simple structure in linear type ,easy in installation and maintation. 2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts. 3) High pressure double crank to control the die opening and closing. 4) Running in a high automatization and intellectualization,no pollution 5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Final Product

Certifications
Company Profile
After Sales Service
FAQ
A. How I get right Machine for me , If I have no ideal about the machine ?
B: It's does't matter. Tell me what kind of fabric that you want the machine , how much you want to produce and factory szie etc. We will design for you.
A.I aready have one factory but there is a little of different in the size ,For example the height can't meet the 13m , only 12m?
B:Don't worry. Your machine will be customized.
A How to make sure your machine's quality?how about the service?
B: Each machine gets ISO9001:2008,CE, SGS. And warranty is one year. you can enjoy the service within production lifetime.
A:May I visit your factory?
B:Sure,welcome any time.We can also pick you up at airport and station.

---
