Big Capacity 8X4 Shacman 33cbm Garbage Compactor Waste Compression Truck

Product Description

Big Capacity 8X4 SHACMAN 33cbm Garbage Compactor Waste Compression Truck
Product Description A garbage truck is a truck specially designed to collect municipal solid waste and transport it to a solid waste treatment facility, such as a landfill or transfer station. Other common names for this type of truck include trash truck in the United States, and refuse truck, dustcart, rubbish truck, junk truck, bin wagon, dustbin lorry, bin lorry or bin van elsewhere. Technical names include waste collection vehicle and refuse collection vehicle (RCV). These trucks are a common sight in most urban areas.
Compression/compactor Garbage/trash trucks
The compression garbage truck consists of a sealed garbage compartment, a hydraulic system and an operating system. The whole vehicle is a fully sealed type, and all the sewage in the process of self-compression, self-dumping, and compression enters the sewage tank, which more thoroughly solves the problem of secondary pollution during garbage transportation and avoids inconvenience to people. Imported parts have the advantages of high pressure, good sealing, convenient operation and safety. Optional rear hanging bucket turning mechanism or garbage bucket turning mechanism.

Feature 1--garbage truck is divided into compactor garbage truck, swing arm garbage truck, hook lift garbage truck, roll on roll off garbage truck,bin lift garbage truck,dumper garbage truck,sealed garbage truck,container garbage truck, rear load garbage truck and so on.
2--Easy Full Automatic Operation: computer control system for loading and unloading operations.
3--One Person Operation: Reducing sanitation working, greatly improves the working environment.
4--Double Operation System: computer control system and manual operation greatly improves the vehicle usage rate.
5--Capacity of rear loader compressed garbage truck: option for 3-22m3 compressed garbage truck
6--Steering wheel of rear loader compressed garbage truck: both left and right hand drive,meet the needs of different countries
7--Emission standard of compressed garbage truck: option Euro 1,Euro 2,Euro 3,Euro 4,Euro 5 compressed garbage truck
8--Truck chassis of compressed garbage truck: option for Shacman, Dongfeng, ISUZU, FAW, Foton, HOWO, JAC, JMC, Forland...
Get the latest quotation, pls contact Ms.Sherry WhatsApp and WeChat online: 0086-138 7288 5200.
Product Parameters

Overall dimensions	10350×2550×3450(mm)	Rated load capacity	14070(Kg)
Gross Vehicle Weight	31000(Kg)	ABS	Standard configuration
Curb weight(kg)	16800(Kg)	Front/rear suspension	1525/2625(mm)
Approach/departure angle	16/12(°)	Front and rear Axle Load	6500/6500/18000(Two-axis)
Wheelbase	1800+3575+1400	Number of axles	4
Maximum speed	89(km/h)	Number of spring pieces	3/3/5,14/14/12
Number of tires	12	Tire Size	11.00R20 18PR
Front track	2011/2011(mm)	Rear track	1860/1860(mm)
volume	20m³	Transmission	Manual
Engine model	WP8.350E61	Power (kw)/horsepower (PS)	257/349
Displacement (ML)	7800	Fuel	Diesel
The truck is used for the collection and removal of garbage, and the main truck consists of a box and a compression system. Optional square or arc box, optional fully sealed lid device, optional rear working device, optional ladder. optional rear working device vehicle length (mm) / extension (mm) / curb weight (kg) correspondence is: (1) no flip mechanism when 10350 / -/ 16800. (2) Barrel turning device, semi-sealing device 10750/400/17200. (3) Fully sealed bucket device, swing arm device 10550/200/17200. side protection using Q235, bolted; rear fender replaced by a special device, the lower edge from the ground height: 480mm.

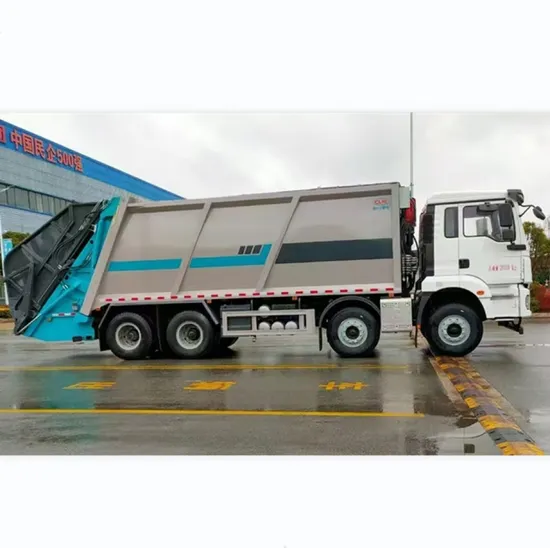

Product photos
Related photos
Packaging & Shipping 1> Packaging: Nude,but waxed before shipment in our factory.

2> Shipping: Small type can be put into 20' or 40' container, big type must be shipped by bulk carriers or ro-ro ship or according to your requirements.
Our Services 1. We are the biggest professional special trucks manufacturer in China,being in this field for 10 years.
2. We can supply more than 300 kinds of special trucks for your needing.

3. OEM Sevice: we can produce the trucks according to your request,such as the material,the size,the colour and the logo is optional for you.
Company Information 1> Our company has solid technology, flawless inspection, advanced equipment, reliant quality and flexible modes operation.

2> We have roundly passed the certification of ISO9001-2008, the 3C (China Compulsory Certification) and other certifications that export needed.

3> We have more than 2000 workers and factory is more than 690,000m2, we have successfully exported to Ghana, Sudan, Kuwait,Nigeria, Angola ,Tajikistan, Azerbaijan,Namibia, Burma, Korea, Iran, Afghanistan,Iraq, Philippines ,Vietnam , Saudi Arabia ,Mexico,Chile ,Bolivia etc. more than 5000 trucks to many Africa & Asia countries.
4> We can produce 12,000 trucks every year, our brand "CLW" obtain "the Chinese well-known trademark".

5> We cooperate with famous chassis manufacturers, such as DONGFENG, FAW, FOTON, JMC, JAC, and NAVECO, etc.
Welcome to visit ChengLi Special Automobile Co.,Ltd !

---
