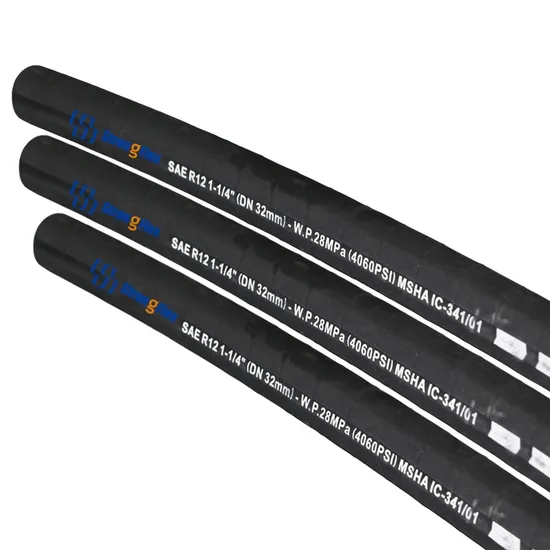

SAE100 R12 Four Steel Wire Spiral Hydraulic Hose

Product Description

Product Description Strongflex Hydraulic hose SAE100 R12
Tube:Oil resistant synthetic rubber
Reinforcement: Four high tensile steel wire spiral layers.
Cover: Black,abrasion and weather resistant synthetic rubber,MSHA accepted.
Temperature:-40 ºC to+125 ºC
Product Parameters

Part No.	I.D.		O.D.	W.P		B.P		B.R	W.T
Dash	Inch	m m	m m	MPa	PSI	MPa	PSI	m m	kg/m
R12-06	3/8"	9.5	20.2	28.0	4060	112	16240	125	0.707
R12-08	1/2"	12.7	23.5	28.0	4060	112	16240	180	0.871
R12- 10	5/8"	15.9	27.3	28.0	4060	112	16240	200	1.107
R12- 12	3/4"	19.1	31.0	28.0	4060	112	16240	240	1.339
R12- 16	1"	25.4	38.0	28.0	4060	112	16240	300	1.984
R12-20	1.1/4"	31.8	47.0	21.0	3045	84	12180	420	2.532
R12-24	1.1/2"	38.1	54.0	17.5	2540	70	10150	500	3.040
R12-32	2"	50.8	67.5	17.5	2540	70	10150	640	4.586

Packaging & Shipping Packing Details : 1. Colorful nylon tape wrapped coils 2. Transparent PVC sea worthy tape wrapped coils 3. Plastic hose reels 4. Wooden hose reels 5. Pallets with hose coils 6. Wooden case with hose coils
