| US$6,570.00 | 1 Piece (MOQ) |

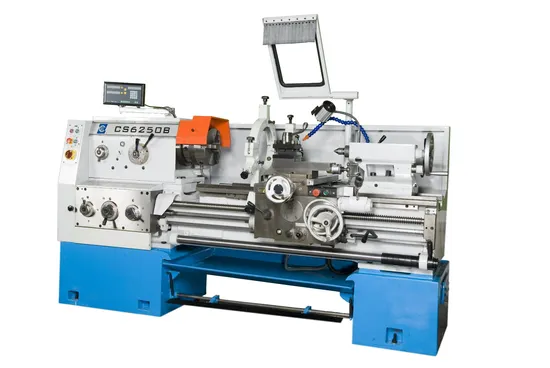

| SPECIFICATIONS | UNIT | CS6250B | |
| Capacity | Max. swing dia. over bed | mm | 500 |
| Max. swing dia.in gap | mm | 710 | |
| Max. swing dia. over slides | mm | 300 | |
| Max. workpiece length | mm | 1000/1500/2000/3000 | |
| Bed width | mm | 400 | |
| Spindle | Spindle bore diameter | mm | 82 |
| Type of spindle nose | no | ISO 702/II NO.8 com-lock type | |
| Spindle speed | rpm | 24 steps 9-1600 | |
| Spindle motor power | KW | 7.5 | |
| Tailstock | Diameter of quill | mm | 75 |
| Max. travel of quill | mm | 150 | |
| Taper of quill (Morse) | MT | 5 | |
| Turret | Tool O.D. size | mm | 25X25 |
| Feed | Max. X travel | mm | 145 |
| Max. Z travel | mm | 320 | |
| X feed range | mm/r | 93 kinds 0.028-6.43 | |
| Z feed range | mm/r | 93 kinds 0.012-2.73 | |
| Metric threads | mm | 48 kinds 0.5-224 | |
| Inch threads | t.p.i | 48 kinds 72-1/4 | |
| Module threads | πmm | 42 kinds 0.5-112 | |
| Diametricpitch threads | t.p.i.π | 42 kinds 56-1/4 | |
| Others | Length | mm | 2632/3132/3632/4632 |
| Width | mm | 975 | |
| Height | mm | 1270 | |
| Weight | kg | 2100/2300/2500/2900 | |
