CNC High Quality Precision ZK5140C/3 ZK5150C/3 Metal Vertical Drilling Machine

Product Description

CNC High Quality Precision ZK5140C/3 ZK5150C/3 Metal Vertical Drilling Machine Product Description

Product Parameters
Product main technical parameters:

Main Technical Specifications		Unit	ZK5140C	ZK5150C	ZK5140C/1	ZK5150C/1	ZK5140C/2	ZK5150C/2		ZK5140C/3	ZK5150C/3
Max. drilling diameter		mm	40	50	40	50	40	50		40	50
Max. Feed resistance		N	16000	20000	16000	20000	16000	20000		16000	20000
Max. Torque of spindle		Nm	350	400	350	400	350	400		350	400
Spindle taper		Morse	4	5	4	5	4	5		4	5
Main motor power		kw	3		3		3			4
Range of spindle speed		r/min	31.5-1400		31.5-1400		31.5-1400			31.5-1400
Feed range	X.Y axis	mm/ min	0.6-3000		0.6-3000		0.6-3000			0.6-3000
		mm/ min	0.3-2000		0.3-2000		0.3-2000			0.3-2000
	Rapid feed Z axis	mm/ min	6000(9000)		6000(9000)		6000(9000)			6000(9000)
		mm/ min	3000(4500)		3000(4500)		3000(4500)			3000(4500)
Spindle box stroke		mm	470		470		470			470
The axis of travel	Table X-axis	mm	600		600		1000			850
	Table Y-axis	mm	400		600		600			800
	Spindle Z-axis	mm	250		250		250			250
Distance between spindle nose to worktable		mm	0-600	0-560	0-600	0-560	0-600		0-560	180-900	90-810
Control method		mm	Microcomputer three-axis control, X,Y-coordinate linkage
Size of worktable (L*W )		mm	850×450		850×650		1250×650			1100x850
Positioning accuracy (X and Y)		mm	0.05(0.04)		0.05(0.04)		0.05(0.04)			0.05(0.04)
Repeat positioning accuracy (X and Y)		mm	0.02(0.015)		0.02(0.015)		0.02(0.015)			0.02(0.015)
Dimensions (L*W*H)		mm	1550×1530×2512		1550×1740×2512		1800×1854×2512			1700x2482x2885

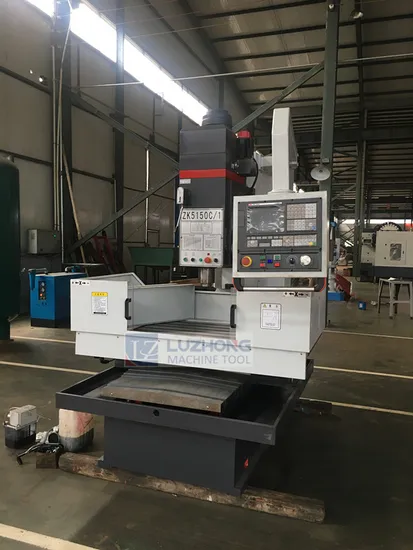

Detailed Photos
Company Information
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
