Cooling Heating and Hot Water Split Hot Water System R32 20kw Heat Pump

Product Description

Product Description

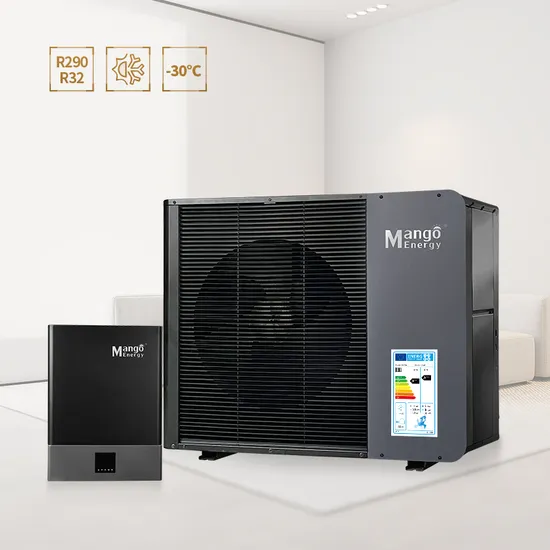

Mango Heat Pump QII PRO Series split DC Inverter Heat Pump with wifi R321.R32 Refrigerant pipe connection for best system stability even in tough weather.
2.E-heater, diverter valve,water pump,and expansion tank can be included
3.A+++ Energy Rating Level,with CE,TUV test report.
4.Low noise sound power level as low as 52dB(A)
5.Work down to -30 degree C
6.WIFI solution available,Carel controller. 7.Function: Heating +Cooling+ Hot water

Model				MGSDC-030IIC	MGSDC-050IIC	MGSDC-060IIC	MGSDC-080IIC	MGSDC-100IIC
HP				3HP	5HP	6HP	8HP	10HP
Power Supply		Indoor Unit	V/Hz/Ph	220-240V / 50hz / 1ph or 380-415V / 50Hz / 3ph
Ambient	Outlet	Outdoor Unit	V/Hz/Ph	220-240V / 50hz / 1ph or 380-415V / 50Hz / 3ph			380-415V / 50Hz / 3ph
+7°C	45°C	Heating Capacity	kW	9.51	16.33	19.70	24.90	30.70
		Power Input	kW	2.63	4.50	5.46	6.97	8.67
COP				3.61	3.63	3.61	3.57	3.54
-12°C	41°C	Heating Capacity	kW	6.76	11.35	13.36	16.40	20.52
		Power Input	kW	2.67	4.50	5.30	6.56	8.18
COP				2.53	2.52	2.52	2.50	2.51
-20°C	41°C	Heating Capacity	kW	5.68	9.41	11.68	14.32	17.24
		Power Input	kW	2.59	4.32	5.33	6.60	8.02
COP				2.19	2.18	2.19	2.17	2.15
-35°C	41°C	Heating Capacity	kW	3.52	5.83	7.62	8.88	10.85
		Power Input	kW	2.55	4.19	5.48	6.48	7.86
COP				1.38	1.39	1.39	1.37	1.38
+35°C	7°C	Cooling outlet	kW	7.51	13.10	16.11	20.38	23.59
		Power Input	kW	2.59	4.50	5.57	7.15	8.28
EER				2.90	2.91	2.89	2.85	2.85
Compressor			-	Panasonic Twin Roter DC Inverter Compressor with EVI System
Refrigerant			-	R32
Fan Motor			-	Nidec DC Brushless Motor
Controller			-	Touchscreen LCD Controller with WIFI and 13 Languages
Water Heating Exchanger			-	Cooper Brazed Plate Heat Exchanger
				1.5MM Galvanized Steel With Powder Coating
EEV			-	Dunan
Rated Water Flow Rate			m³/h	1.5	2.4	2.8	4.1	5.2
Rated Pressure Drop			kPa	30	45	45	40	47
Max Working Pressure		Refrigerant	Bar	44 Bar
		Water	Bar	7 Bar
Water Connection		Inlet&Outlet	inch	1"	1"	1"	1"	1-1/4"
Noise Level		Indoor Unit	dB(A)	42	42	42	42	42
		Outdoor Unit	dB(A)	52	56	58	59	61
Net Dimension W*D*H		Indoor Unit	mm	522*296*863.5	522*296*863.5	522*296*863.5	522*296*863.5	602*308*880
		Outdoor Unit	mm	950*445*800	976*410*1273	940*448*1365	1150*480*1565	1405*590*1626
Net Weight		Indoor Unit	kg	55	55	55	55	70
		Outdoor Unit	kg	58	90	100	120	175
Remark		1.The values of heating(cooling) capacity/power input/COP(EER) are based on measurement of EN14511 standard.Usage environment, such as operation of the heat pump, room temperature and controller adjustments, may cause disparities between practically determined and these values; 2.Sound pressure level measured at distance of 1m from the device; 3.For wall-mounted type, the compressor is located in the outdoor unit;

Key parts of Mango all in one heat pump water heater DC inverter heat pump
Hydrophilic plus-size-area fins, ripple copper pipe...
Applicarion of Mango all in one heat pump water heater DC inverter heat pump

Good comments
Send your inquiry, right away!
For detail of our Mango all in one heat pump water heater DC inverter heat pump

---
