Small Silage Harvester Mounted Green Feed Forage Harvester Agricultural Machinery

Product Description

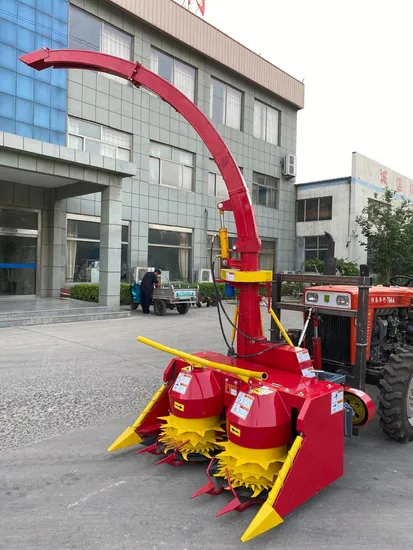

Small Silage Harvester Mounted Green Feed Forage Harvester Agricultural Machinery
Our forage harvester is manily used for harvest and chop green forage like corn stalk, napier grass, cotton stalk, pasture and reed and so on. Our forage harvester have function of collecting, chopping, kneading and blowing. After harvesting, the length of the forage can be from 1-3 cm which you can adjustable.
Specification:

Item No.	4QX-1400	4QX-1700	4QX-2300	4QX-2600
Working Width	1400mm	1700mm	2300mm	2600mm
Machine Size	3800*1485*3980mm	4740*1810*4790mm	4870*2460*4790mm	4450*2750*2500mm
Machine Weight	1150kg	1300kg	1600kg	1750kg
Matched Power	40-50kw	73.5-95.6kw	102-117kw	117-132kw
Linkage Type	Trailed	Trailed	Trailed	Trailed
Cutting Table Type	Disc	Disc	Disc	Disc
Cutting Type	Blade	Blade	Blade	Blade
Cutting Speed	4-7km/h	4-7km/h	4-7km/h	4-7km/h
Cutting Rotor Dia.	890mm	890mm	890mm	890mm
Mainshaft Speed	750-1000 r/min	850-1000 r/min	850-1000 r/min	1000 r/min
Thrower Height	4300mm	4300mm	4300mm	4300mm
Minimum Ground Distance	445mm	445mm	445mm	445mm
Thrower Rotation Angle	+-180	+-180	+-180	+-180

Advantages:
1. Bilateral independent transmission, keep the structure symmetry ;
2. Fan (blower), blender and double speed double shaft, which can avoid blocking ;
3. Wind leaf, local use of carbon fiber material to improve strength
4. Wear-resisting blades, to extend service life
5. With hydraulic motor,the outlet can be adjusted to any direction in need of transport.
Our Company:
Shandong Denong Agricultural Machinery Manufacturing Co. Ltd. , occupies an area of more than 120 acres in Ningjin County on the Northwest Plain of Shandong Province in China. We are an enterprise integrating R&D, manufacture and sales of agricultural machinery products. With 30 years of machining history, our company now have more than 600 employees while 70% are professional and
technical personnel and 10% are managers. Owning a fixed assets of 60 million Yuan, 8 production assembly lines, more than 350 sets
of equipment, and a complete comprehensive quality management system, our annual production capacity now is ≥100,000 sets, and production & sales are increasing year after year.
