Universal DVB Power Board DVB-203 for Receiver

US$0.78
5,000-9,999 Pieces
US$0.77
10,000-19,999 Pieces
US$0.71
20,000+ Pieces

Basic Info.

Model NO.
PH-D203
Certification
GS
Condition
New
Size
8.5*5cm
Package
Color Box
Output
50000PCS/Month
Transport Package
Color Box
Trademark
OEM
Origin
Changzhou
HS Code
852901014
Production Capacity
600000/Year

Product Description

Universal DVB Power Board DVB-203
Used for all kinds of Satellite Receiver
Port Voltage and Current Parameters
Rated Voltage 3.3V +12V 21V
Deviation Range ±0.2V ±1V ±3V
MAX Current 1.5A 0.3A 0.35A
Rated Current 1A 0.2A 0.255A
Slope Voltage 40mV 100mV 220mV
This module has only three leading wires and can be connected to the original machine is circuit in the simplest way the protective functions it has inelude the protections against over-voltage,over-current,short-circuit,and erroneous connection of leading wires.It can be installed so convebiently and quickly that use of just two wiresof this module can achieve this prpose for most machines Extremely strong loading capacity and more stable and reliahle usahe can bring great convenience to daily maintenance and application of hhis product.It not only can be used to maintain and substitute various color 's seitch power supply circuit,but also is applicable gor carious large-size color tv's.Moreover,it can be used in the switch power supplies of VCD,DVD,DVB satellite receiber,etc

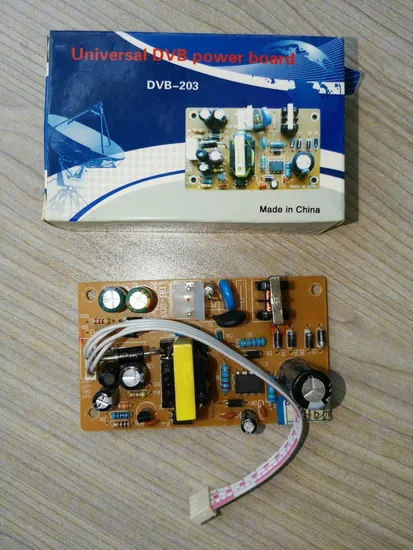

PHOTO OF PRODUCT
Size of product: 8.5*5cm
200pcs/master carton
Size of carton: 53*29*30cm
G.W/N.W: 16/15KGS
