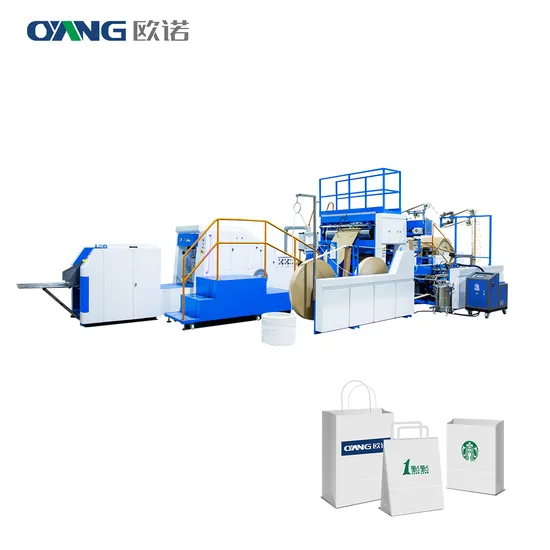

Fully Automatic Kraft Brown Square Bottom Shopping Paper Bag Making Machine with Printing Online

US$240,000.00-320,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
New world -A
Voltage
380V
Seals Mode
Glue Sealing
Speed
High
Continuous-Rolled
Yes
Sealing & Cutting
Glue Sealing
Layer
Double
Machine Type
Bag Forming Machine
Computerized
Computerized
Type
Paper Bag Making Machine
Production Speed
200PCS/Min
Bag Width
150-550mm
Bag Length
280-770mm
Gusset
90-200mm
Bag Making Thickness
60-170g.S.M
Power Supply
380V 50Hz
Total Power
19kw
Overall Size(L*W*H)
10.7*2.6*1.9m
Transport Package
Plastic Film, One Set Machine One 20FT Container
Specification
CE & ISO 9001
Trademark
OUNUO
Origin
Wenzhou, China
HS Code
8449009000
Production Capacity
35 Sets/Month

Product Description



Machine Parameters
MODEL
New world -A220
New world -A330
New world -A400
New world-A460
Paper diameter
≤1500mm
≤1500mm
≤1500mm
≤1500mm
Core inner diameter
Φ76mm
Φ76mm
Φ76mm
Φ76mm
Paper weight
70-140g
80-140g
80-140g
80-150g
Paper bag width
120-220mm with handle
200-330mm with handle
200-400mm with handle
240-460mm with handle

80-220mm without handle
150-330mm without handle
150-400mm without handle
220-460mm without handle
Paper tube length
191-350mm With handle
280-430mm With handle
280-550mm With handle
300-680mm With handle

191-430mm Without handle
280-510mm Without handle
280-600mm Without handle
300-780mm Without handle
Bottom width of paper bag
50-120mm
80-180mm
90-200mm
90-260mm
Machine speed
150pcs/min
150pcs/min
150pcs/min
150pcs/min
Total power
32KW
32KW
34KW
35KW
Machine weight
13000KG
16000KG
18000KG
20000KG
Machine dimensions
12 × 5× 2.5 M
14 × 6× 2.5 M
15 × 6× 2.5 M
16× 6× 2.5 M
