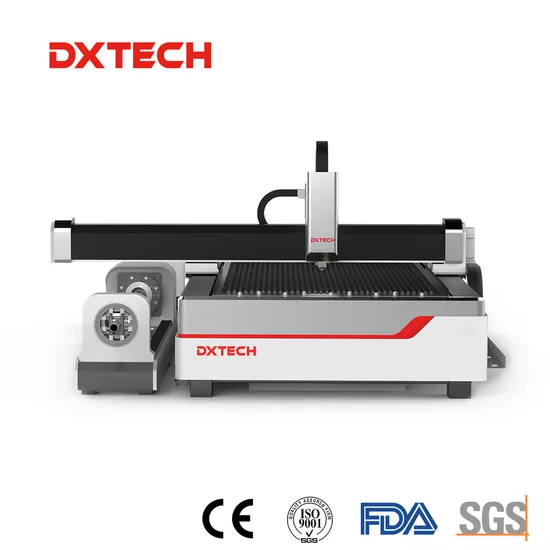

CNC Sheet Metal Fiber Multifunctional Laser Cutting Machine Plate and Tube

US$40,000.00-59,000.00 1 Piece (MOQ)

Basic Info.

Application
Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Advertising Industry
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Gantry Type
Laser Cutting Machines Laser Power
1000W,1500W,2kw,3kw
Working Table
Sawtooth Platform
Model
1530 Fiber Laser Cutting Machine
Laser Wave Length
1064nm
Maximum Idle Running Speed
1200mm/S
Position Accuracy
0.05mm/M
Position Speed
20m/Min
Minimum Line Width
0.02mm
Cutting Thickness
<6mm
Position Type
Red DOT
Power Consumption
<12kw
Working Voltage
380V/50Hz
Auxiliary Gas
Oxygen,Nitrogen,Air
Working Life of Fiber Module
More Than 100000 Hours
Fiber Laser Cutting Head
Lasermech Made in USA
Transport Package
Wooden Box
Specification
1500mm*3000mm
Trademark
Dxtech
Origin
Shandong
HS Code
8461500090
Production Capacity
300 Per Month

Product Description

Features
This protective metal fiber laser cutting machine adopts the fully enclosed laser protective cover, it can not only ensure the safety of the operator, but also be more environmentally friendly. Equipped with a professional CNC cutting system to ensure high-speed and stable operation of the machine. And Equipped with top imported parts to ensure the machine has a longer life.
Advantages
1. Adopting fully enclosed laser protective cover, it can not only ensure the safety of the operator, but also be more environmentally friendly. 2. Equipped with a professional CNC cutting system to ensure high-speed and stable operation of the machine. 3. With imported laser head, it has the advantages of fast processing speed, high processing quality, and processing efficiency. 4. With top imported parts, it can ensure the machine has a longer service life.
