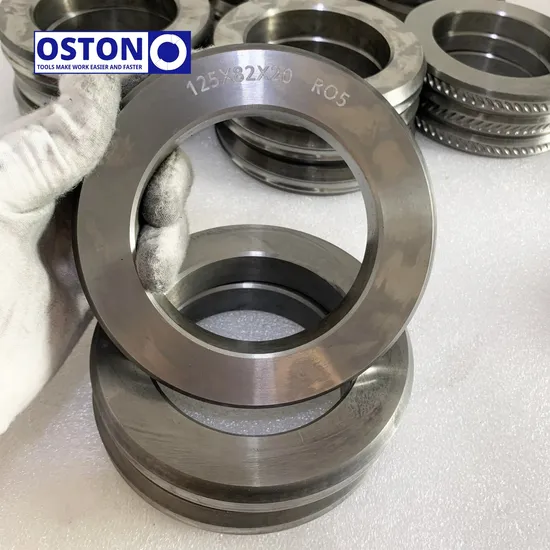

125X82X20mm RO5/Rt5 Carbide Ribbing Roller Composite Tungsten Carbide Ring Rolling Mill Tc Rolls

Product Description

125x82x20mm RO5/RT5 Carbide Ribbing Roller Composite Tungsten Carbide ring rolling mill TC Rolls
Quick Information
Tungsten carbide rollers,also called as tungsten carbide wire mesh rolls,is applied in reinforcement wire cold rolling and forming mills in construction industry,thread steel bars are with the durability 10 to 20 times higher compared to common steel roller,and the surface quality and the steel bar size accuracy are greatly improved.
Oston tungsten carbide rollers are produced by isostatic suppressing and HIP sintering,which are the most advanced facilities to ensure the stable properties,which reduces the production cost and improves the rebars quality with high precision on dimension,clear ribs and beautiful surface.

Item name	Tungsten carbide indented roller
Dim.	As dimension table below.
Types	RO,RT,FO,CA,FR,customization
Place of origin	Zhuzhou,Hunan
Delivery time	22-25 days for one batch

Detailed Photos

Main Dimensions
T.C roll is one of Oston leading carbide products, we owned molds of all standard carbide roller dimensions including:
Φ123*Φ82*15mm-RO/RT/FO/CA/PRΦ125*Φ82*15/20mm-RO/RT/FO/CA/PRΦ145*Φ95*16/18mm-RO/RT/FO/CA/PRΦ150*Φ95*15/16/18/22mm-RO/RT/FO/CA/PRΦ150*Φ90*15/16/20/22mm-RO/RT/FO/CA/PRΦ180*Φ125*15/16/18mm-RO/RT/FO/CA/PRΦ200*Φ90*15/16/20/22mm-RO/RT/FO/CA/PR

Blank size with the tolerance(mm):
Dimension and Tolerance mm
D	Tolerance	d	Tolerance	H	Tolerance
<=125	+0.5~+1.8	<=90	-1.5~-0.5	<=20	+0.5~+1.5
>125~180	+0.5~+2.5	>90~95	-1.5~-0.5	>20	+0.5~+2.0
>180~250	+0.5~+2.8	>95	-2.0~-0.5	---
>250	+0.5~+3.5	----	---	---

Finished size with the tolerance(mm):
Dimension and Tolerance mm
OD	Tolerance	ID	Tolerance	H	Tolerance
<=125	+/- 0.015	<=90	0.0/+0.02	<=20	+/- 0.01
>125~180		>90~95		>20
>180~250		>95		---
>250		----		---

Finished size (mm):
Radial run-out of groove	Radial run-out of periphery	End face runout	Surface parallelism	Inner hole cylindricity
0.013	0.013	0.01	0.01	0.01

Wire RangeΦ (mm)			OutsideΦ (mm)	InsideΦ (mm)	Thickness (mm)
4-8.5			123	82	15
9-12			123	82	20
4-8.5			125	90	15
9-12			125	90	20
4-8.5			140	90	15
9-12			140	90	20
4-8.5			150	90	15
9-12			150	90	20
4-8.5			160	90	15
9-12			160	90	20
4-8.5			220	130	15
9-12			220	130	20

Customized dimensions are also more than welcome here with even 1 PC testing quantity,please feel free to contact us if you have any need on carbide products.
Quality Control
About Oston Carbide
Q:What kind of products and service could OSTON supply ?A:OSTON has been specializing in carbide solutions for clints more than 20 countries,which includes design and manufacturing of various carbide parts. Q: Is there any certification for products of OSTON ?A: Yes,All products from OSTON have been endorsed with the ISO9001:2015 certification. Q:Can a drawing be supplied to OSTON for further design ?A: Yes,we encourage sending as more information as possible,drawing and sketch are welcome for specific quotation,even a sample could be sent to OSTON for further design. Q:When can I get the offer after sending inquiry ?A:Our sales operates between 9:00 am to 6:00 pm Monday to Friday,Offer is usually supplied within 24 hours after we got your inquiry,if you are urgent to get the price,please call us or send email so that we'll take it as priority. Q:How long time I need spend on waiting for my goods ?A:Usual delivery time is 15-18 days after 30% down payment is received,please confirm with us before placing the order if you need urgent turnaround delivery.

---
