| US$30,000.00-45,000.00 | 1 Piece (MOQ) |

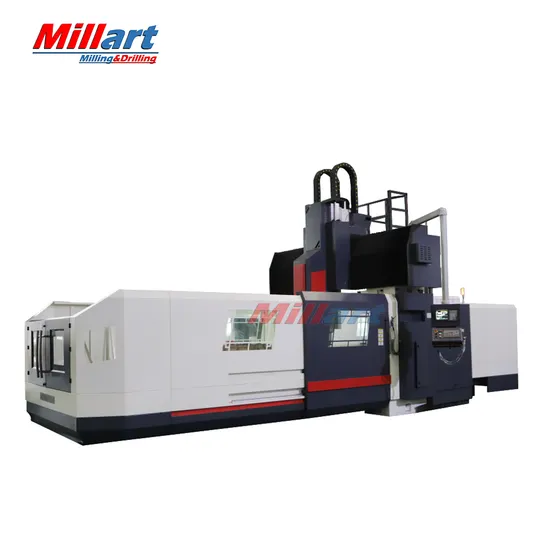

| Item | Unit | XH1320 |
| X axis travel | mm | 2000 |
| Y axis travel | mm | 1400 |
| Z axis travel | mm | 800 |
| Spindle nose to worktable | mm | 60-860 |
| Distance between two column | mm | 1400 |
| Leadscrew diameter | mm | 63/50/50 |
| Linear guideway width | mm | 45/45/45 |
| Worktable Length | mm | 2000 |
| Worktable width | mm | 1000 |
| T slot qty-width*distance | mm | 7-22*150 |
| Max loading capacity | Ton | 3 |
| Spindle speed | rpm | 10000/belt |
| Spindle motor power | kw | 15 |
| Fast moving speed | m/min | 20/20/10 |
| Cutting speed | mm/min | 1-10000 |
| Spindle taper | BT50 | |
| Feed motor power | kw | 6/5/5 |
| X/Y/Z axsis motor torque | Nm | 38/30/30 |
| Tool Magazine Capacity | pcs | Disc/24 |
| Positioning accuracy | mm | 0.016/0.015/0.015 |
| Repeat accuracy | mm | 0.012/0.010/0.010 |
| Length | mm | 4000 |
| Width | mm | 2600 |
| Height | mm | 3200 |
| Weight | kg | 14500 |
| Mitsubishi M80B controller |
| Spindle speed 6000rpm belt type |
| 24 tools disc type |
| Screw type chip conveyor & chip bucket *2 |
| Chain type chip conveyor & chip bucket *1 |
| Nitrogen balance cylinder |
| Air conditioner in cabinet |
| Air gun+Water gun |
| Automatic lubricating system |
| 2-Axis linear guideway from Taiwan Hiwin |
| Ball leadscrew from Taiwan Hiwin |
| Levelling pad,nut and bolts |
| Tools and tool box |
| Spindle oil cooler |
| CTS 20bar |
| CTS 30bar |
| Reneshaw tool probe TS27R |
| Reneshaw workpiece measurement device OMP60 |
| Gearbox |
| Gear head |
| Manual angle head |
| Auto angle head |
| Chain type ATC 32 tools |
| Chain type ATC 40 tools |
| HEIDENHAIN scales/1m |
| 4th Axis rotary table 255mm+tail stock+hydraulic station |
| 5th Axis rotary table 255mm+hydraulic station |
