Zmde High-Precision CNC Machine for Steel Drilling Solutions

Product Description

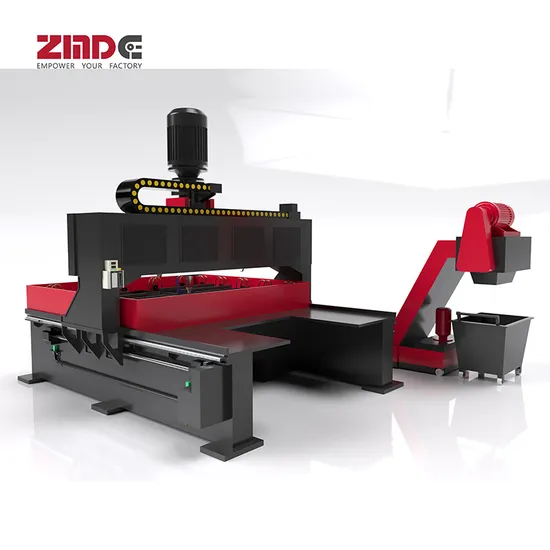

ZMDE Precision CNC Machine for Steel Drilling Equipment Industrial Metal Processing
------------------------------------------
>Superior Cost-Effectiveness and Reliability <
1. Constructed from premium materials, this equipment boasts a low failure rate, drastically minimizing maintenance costs. Components such as ball screws, linear guide vice, hydraulic parts, electrical parts, servo motors, and frequency converters are sourced from renowned industry brands.
2. Equipped with a CRT display for automatic chip removal, this machine significantly reduces the cost and time associated with manual cleaning.
3. The high precision of the equipment ensures an exceptional qualification rate of workpieces, leading to a reduction in consumable costs.
>Effortless Operation, Maximized Productivity <
1. Featuring a user-friendly human-machine interface, it facilitates clear, visual, and automatic machining program generation.
2. Precision is guaranteed with CNC and PLC controls, ensuring accurate positioning every time.
3. Workpieces are securely clamped by hydraulic clamps, allowing the operator to manage the machine effortlessly via a foot switch, enhancing convenience and reducing labor.
4. The table is equipped with 12 rapid hydraulic clamps, allowing simultaneous clamping of four workpiece groups.
5. Small workpieces can be strategically clamped at the four corners of the table, significantly shortening production preparation cycles and boosting efficiency.
6. This setup allows for small workpieces to be clamped at the table's corners, dramatically reducing production preparation times and enhancing production efficiency.

> Uncompromised Quality, Versatile Applications <
1. Key accessories like the gantry, column, and table are crafted from robust materials, with the main machine weighing in at a substantial 6300kg, ensuring stability and durability.
2. Suitable for various industries, this machine is essential for connecting plate processing.
3. It supports a wide range of drilling diameters, from 12mm to 50mm, catering to diverse requirements.
> Ideal for Diverse Production Scenarios <
1. Facilitates continuous production of multiple batches of single flat-type workpieces, ensuring efficiency.
2. Perfect for small batch production of multi-species workpieces. Capable of processing plates in various shapes like rectangular, round flange, and polygonal. It can handle two or four different plate specifications simultaneously.
3. Enables the production of multiple layers of thinner sheets in stacks, with a maximum drill depth of 100mm, enhancing productivity.
4. Utilizes upper computer software for automatic processing of start and end points, capable of drilling through holes, blind holes, step holes, and hole end chamfers.
> Streamlined Production Process Automation <
1. Features line board integration with a high degree of automation, automatically positioning according to the drilling program.
2. Adjusts the optimal feed volume based on different hole diameters, ensuring efficiency.
3. Capable of automatic and continuous processing of large hole diameters, achieving one-time processing and molding.
4. Comes with an automatic chip removal function for seamless operation.
Technical Parameters

Machine Configuration
High Precision CNC Radial Drill for H-Beam Processing
Model.		ZMD-Z2016
Workpiece Size	Thickness of material stacking(mm)	100
	Length×Width (mm)	2000×1600 One piece
		1600×1000 two pieces
		1000×800 Four pieces
Workpiece clamping	Number of clamping cylinders 12	Clamping force7.5Kn/1pc.
Vertical hydraulic type Drilling power head	Number of spindles	1pc
	Spindle taper hole	morse.taper 5#,4#
	Maximum drilling diameter	50mm
	Spindle speed (frequency conversion stepless)	100-560rpm
	Work feed speed	20-200mm/min(hydraulic speed regulation)
	Spindle feed stroke	190mm
	Spindle motor power	5.5KW
Gantry longitudinal movement (X-axis)	Maximum stroke	2000mm
	Traveling speed	0-5m/min
	Servo motor power	1KW

Hydraulic system	System pressure/flow	6MPa/30L/min
	Hydraulic pump motor power	2.2KW
	Oil tank capacity	100L
Chip removal and cooling	Form of chip conveyor	Chain plate type
	Number of chip conveyor	1
	Chip discharge speed	1m/min
	Power of chip removal motor	0.75KW
	Cooling pump motor power	0.75KW
	Liquid system pressure	5MPa
CNC System	Upper-computer software	ZMDE
	Number of numerical control axes	2
Total installed power	11KW
Machine Outline Dimension	L×W×H	4210×2605×2850mm
Weight	Main machine	Approx. 4300Kg
	Chip removal system	Approx. 500Kg

Company Profile
Founded in 2013, ZMDE Co., Ltd. is a pioneering force in the research, development, manufacturing, sales, and service of cutting-edge intelligent equipment tailored for the assembly building industry. Proudly recognized as one of the national 'small giants' among high-tech enterprises, ZMDE's expertise centers on the innovation of steel structure assembly building intelligent industrial mother machines and the industry IoT.intelligent control systems. The company's commitment to excellence and technological advancement sets it apart in the realm of industrial automation.
Nestled in Lingang New Area, Pudong New District, Shanghai, the company headquarters spans a vast 32,000 square meters. This location is home to the Research Institute of Artificial Intelligence for Assembled Buildings, a hub dedicated to the management and advancement of pioneering core technologies in AI for Assembled Buildings, Intelligent Buildings, and the Industrial Internet of Things (IoT).
Our Shandong base, located in Weicheng District, Weifang City, serves as the center for the research, development, and production of state-of-the-art intelligent industrial mother machines designed for steel beams and walls utilized in assembled buildings. This facility underscores our commitment to delivering top-tier solutions for the construction industry's evolving needs.
FAQ
1.Q: What is the minimum order quantity?
A: 1PCS.

2.Q: What are the payment terms?
A: L/C; T/T.

3.Q: How long is the delivery time?
A: 30 Days.

4.Q:How long is the warranty period?
A: 1 Year.(Original Manufacturers. equipment parts can be achieved lifelong maintenance)
5.Q: ODM/OEM Service
A: Available

---
