TS2600 Iron loss Fast Tester for Electrical Steel Sheets

Product Description

TS2600 Iron loss Fast Tester
for Electrical Steel Sheets

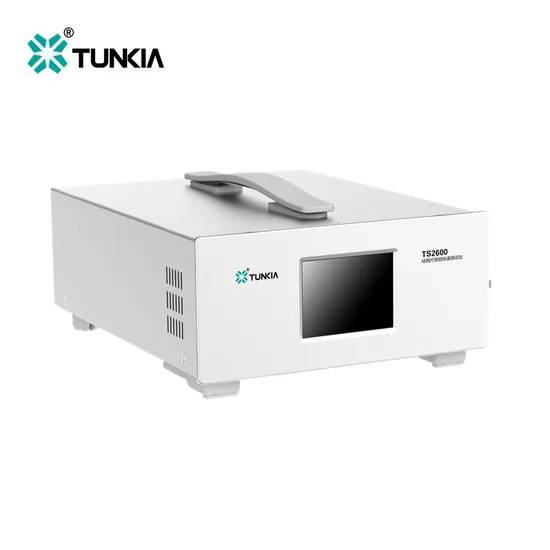

*Above picture is only for reference, subject to actual delivery 1. Summary TS2600 is an instrument used to quickly measure the AC magnetic properties of electrical steel sheets. It can quickly measure Ps of electrical steel sheets. 2. Features It can quickly measure the loss of multiple points. It can display a variety of magnetic parameters, including Ps,Jm,Hm. The user only needs to press the sheet tester under specimens to measure. Supports one-click storage and viewing of measurement data, including test date and time. Equipped with large size LCD touch color screen. 3. Specifications

Testing Capability	Test point	P1.0,P1.5,P1.7 [1]
	Frequency	50 Hz / 60 Hz
	Uncertainty of Voltage and Current (k=2)	0.2%*RG [2]
	Uncertainty of Active Power	0.5%*FS [3]
	Uncertainty of Ps (k=2)	10%
	Repeatability of Ps	2%
Specimens	Size (L × W)	≥ 30 mm × 100 mm
	Thickness	0.1 mm~1.0 mm
	Other Requirements	The surface should be clean, flat, free from spots and scratches

Note: [1] P1.7 is the test point of orientation steel; Note: [2] RG is range; Note: [3] FS= Voltage range x current range, when the phase Angle is within 75 degrees. Repeatability: put the same specimens in the specified position and keep it from moving, and measure it repeatedly for 10 times. Take the maximum or minimum value of 10 measurements minus the average value divided by the average value, and the maximum value of the two represents repeatability. 4. General specifications

Power Supply	AC ( 220 ± 22 ) V,( 50 ± 2 ) Hz
Temperature Performance	Working temperature:0°C~40°C; Storage temperature:-20°C~70°C
Humidity Performance	Working humidity:40%~80% R·H,No condensation Store humidity:< 95% R·H,No condensation
Quality	About 3kg
Size	230 mm(W) ×290 mm(D) × 130 mm(H)
