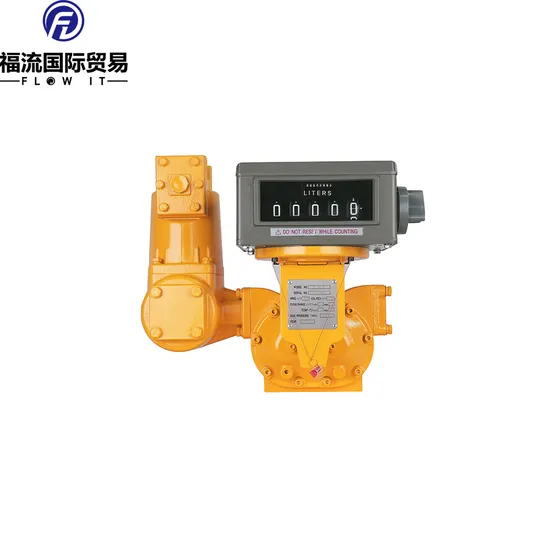

Positive Displacement Counter Flow Meter

Product Description

Product Description Characteristic
Excellent stepless fine-tuning device allows plus-minus calibration of flowmeter;
High accuracy and repeatability within the large range of flow;superior accuracy of constant flow;
Low maintenance, low wear, long working life;
Low pressure loss, genuine gravity flowmeter;
Accuracy regardless of pressure fluctuations,temperature variation, viscosity;
Aluminum, cast iron and stainless steel materials of construction for choice.
Construction Technical Data

Model	LC-40-1	LC-50-1	LC-50H-1	LC-80-1	LC-80H-1	LC-100-1	LC-100H-1	LC-150-1	LC-150H-1
Size	40mm/1.5''	50mm/2''		80mm/3''		100mm/4''		150mm/6'' or 100mm/4''
Flow Range(L/min)	25-250	38-380	55-550	75-750	115-1150	130-1300	170-1700	225-2250	300-3000
Volume Per Revolutior	0.309L	0.681L		1.839L		5.102L		9.507L
Max Pressure	108Bar/150PSI
Accuracy	±0.2%
Repeatability	≤0.5%
Unit	Liter/US Gallon/IMP Gallon

Function & Feature
1. External handle structure with guide bushing, it can directly fix inhaul cable, to ensure open & close smoothly.
2. Aluminum surface deal with oxidation treatment.
Bottom Valve(Emergency Shut Off Valve) Introductionn
troduction It install on the bottom of the tanker with the disc sealed inside it.Valve body with self-cut groove.When in the event of accidental damage,the external housing will break away from the self-cut groove,keeping the connection to the valve tank mounting flange,leaving the bottom valve sealing mechanism within the tank compartment intact,efficiently protecting the tanker from leakage,ensuring the safety of transportation.It is suitable for water,diesel,petrol and other light fuel
Detailed Photos
Packaging & Shipping Company Profile
Certifications

---
