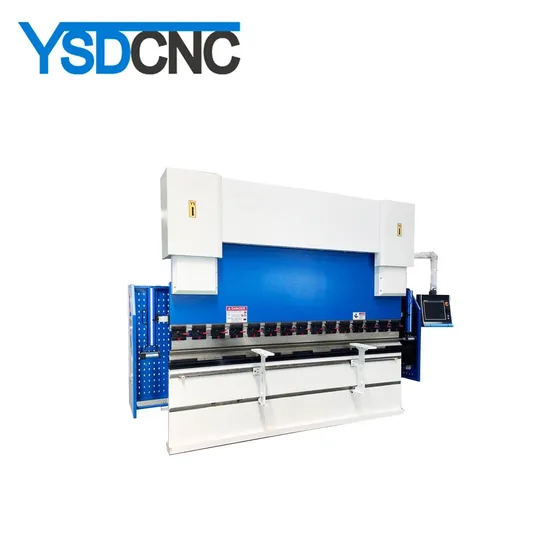

Ysdcnc Da52s Cybtouch 8 PS Quick Clamping CNC Hydraulic Press Brake

Product Description

YSDCNC DA52s CybTouch 8 PS quick clamping cnc hydraulic press brake

Related Products
Product Information


Electro-hydraulic servo CNC Press Brake
Nanjing Shanduan CNC Machine Tool Co., Ltd is one of the Top 3 press brake and shearing machine in China, which specializing in manufacturing and marketing of press brake,shearing machine,press machine, square duct production line LINE5,4,3,2,1;spiral duct machine, locking forming machine;folding machine,plasma cutting machine, power press,ironworker,hydraulic notching machine, beading machine,flange forming machine,shearing machine & press brake,Blade/Mold, etc.

Company Name (manufacturer): Nanjing Shanduan CNC Machine Tool Co., Ltd.

Brand: YSDCNC

Address: MINGJUR INDUSTRIAL CONCENTRATION DISTRICT,SHIQIU TOWN,LISHUI AREA,NANJING,JIANGSU

Website:

1. Performance Features:
The whole structure of the hydraulic folding machine:
- Totally European design,streamlined looking,Frame: consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and
can be transported easily
- Welded structure: the stress of the welded parts can be eliminated by vibration; so this forging press gives high accuracy.
- High accuracy,high efficiency,simple and convenient operation,good performance, favorable price and best service.

1. Hydraulic system:
- Adopt integrated hydraulic control system, more reliable and easy for maintenance. The hydraulic system consists of motor, oil pump and valve groups and it is installed at the top of the oil box.
- Every complete working cycle can be achieved through the control of hydraulic valve.The remote adjustment valve can adjust the working pressure at the right side of the wall board.
- All seals in cylinder is imported,the most famous brand,good quality and high performance
- Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly

2. Electrical system and the safety interlock:
- Electrical components are imported or from Sino-foreign joint Venture,in accordance with international standards,reliable safety,long life,good anti-interference ability,a radiation unit is fitted in electrical cabinet.
- Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
- The machine by the European Union CE certification and ISO quality system certification

3. Synchro control system:
- Slide syncho system: adopt steel torsion bar synchro system, simple in structure and high in accuracy
- 2 ends of slide has 2 synchro fork which make,The system uses upper die compensation to improve the brake precision.
- The worktable adopts the particular design,reducing the crowning distortion amount of lower tool effectively.

4. Ram structure:
- Upper stroke design for bending,low noise,stable operating situation.
- Can move the ram up slowly,which allows the operator to control work piece conveniently.
- Universal fixing-surface of the upper tool can be meeting with the clamping requirement of the tool farthest.
- Separate sectional clamping bars are supplied as standard equipment in order to securely fasten short dies.
2. Main Import Configuration:
·· 3 & 4- axis Delem DA52s programming mode CNC contro
·· Japan askawa Servo motor and drive
·· Germany hydraulic system
·· Taiwan HIWIN Ball screw and Linear guide
·· German EMB joint
·· FIETZ, Japan, VALQUA, Japan Sealing ring
·· Italian Grating ruler










Technical Parameters Product Details
Import configuration

NO	UNIT	NUMBER	MARK
1	CONTROL SYSTEM	1set	DA-52S(DELEM)
2	SEVRO MOTOR	1set	Japan yaskawa
3	HYDRAULIC SYSTEM	1set	HOERBIGER, Germany.
4	Ball screw	2sets	Taiwan HIWIN
5	Linear guide	2set	Taiwan HIWIN
6	joint	1set	German EMB
7	Sealing ring	1set	FIETZ, Japan, VALQUA, Japan.
8	Grating ruler	2set	Italian
9	Major electrical components	1set	Import or joint venture

Random tools

Serial No.	Name	Quantity	Remark
1	Main unit	1	Including one set of upper and lower die, front plate holder and foot switch
2	Grease gun	1
3	Button key	2
4	Key to door lock	2
5	Product instructions	1
6	certificate of quality	1
7	Packing list	1
8	Foundation bolt	4 sets	Including nuts and washers
9	O-type sealing ring	16

Production Process
