Zhihe/ Shuangyang Brand High Quality Cheap Price CE Standard CNC Ganry Grinding Machine, Gantry Grinder (MK SERIES) Mk2010A 2000X1000

Product Description

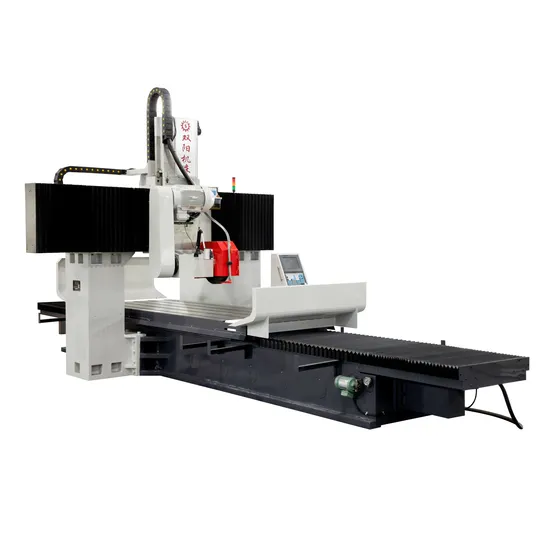

CNC Gantry grinding machine
pls be free to contact me for more information
DATASHEET

Specifications		MK2010A
Table working size(W*L)	MM	1000*2000
Max size of workpiece (W*L*H)	MM	1200*2000*600(800)
Width of gantry columns	MM	1600
Table longitudinal travel (hydraulic)	MM	2100
Speed of table (stepless)	M/MIN	5-25
Max load of worktable(include magnetic chuck)	KG	4000
Distance from grinding wheel spindle to table surface	MM	200-850
Grinding head motor	KW	15
Grinding wheel size(od*w*id)	MM	500*75*203
Vertical distance	MM	650
Mini vertical feed	mm	0.005
Overall dimentions(L*W*H)	mm	6000*3500*4000
NT	T	About 23

Detail Photos

It can add a grinding head to be a gantry slideway grinding machine
It can be desgined as PLC control or CNC control
pls contact me for more information
WORKSHOP
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as surface grinding machine, CNC surface grinder ,CNC Milling Machine ,Vertical Machining Center ,Drilling Machine ,gantry milling machine , CNC gantry milling machine, CNC gantry grinding machine so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in NO 370 Changjiang North Road, NANTONG ,JIANGSU ,CHINA. If you have interest to visit our factory, pls inform
me ahead, i will arrange and company you your visit period.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
