1bq Hydraulic Light-Duty off-Set Disc Harrow (China DISC HARROW MANUFACTURER)

Product Description

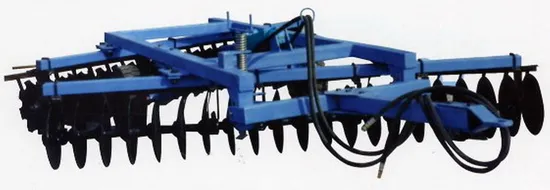

1BQ Hydraulic Light-Duty off-Set Disc Harrow
Product introduction:
1BQ series Off-set Light-duty Disc Harrows front and rear gangs are all assembled with plain disc,Rated power is 604
wheel tractors and the larger class tractors. Moreover. Model 1BQD-6.6 disc harrow's folded wings make the working
width wider and transportation width narrow. Fitted with hydraulic lifting rubber wheels and spring adjusting devices and roller
bearing assemblies. They're convenient for transporting. Reverse radius is smaller. And it's easy to be adjusted and maintained.
Technical parameters:

Model	1BQ-2.9	1BQ-3.4		1BQ-4.3		1BQ-5.0	1BQD-6.6
Overall dimensions(cm)	536x300x105	536x345x105		545x440x105		550x510x105	620x680x150
Max. working width(m)	2.9	3.4		4.3		5.0	6.6
Working depth(cm)	10~14
No. Of disc	36		42		52	60	80
Size of disc(mm)	460x3
Disc spacing(mm)	170
Weight(kg)	1050		1108		1450	1580	2000
Productivity(ha/h)	1.7		1.72
Linkage	Trailed
Trans. Clearance(mm)	≥160
Matched power(HP)	60~80		65(4)~100		80~120	100~150	120~180
