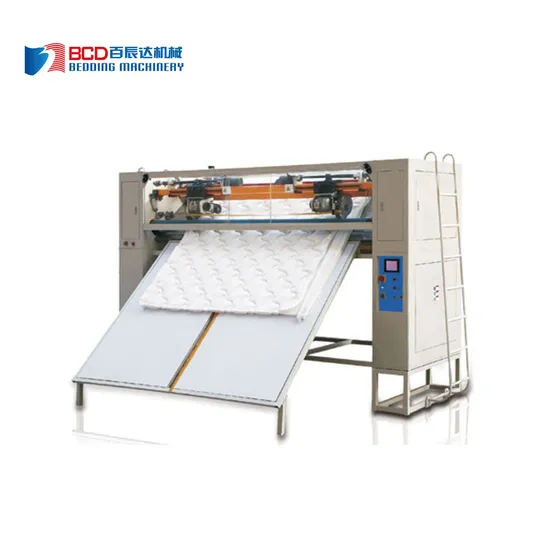

Model Bcb Mattress Panel Fabric Cutting Machine

Product Description

This machine is mainly used for auto cut the quilted panel ,cross cut ,vertical cut ,border cut and rolling are all available , normally equipped with quilter machine . Its feature as: 5.6 inch Panasonic touch screen ; All electric components CE certificated; Vertical cutter cover increased the security protection ;Electrical adjust of border cutter ,pneumatic electrical sharpening device,intelligent operation.Light material detection device make 5mm light material cutting available .Pneumatic intension device makes fast load fabric ; Cutting length inductor can be accurately and fast adjusted through handle,makes frequent length change used no trouble ;Box figure ,optimum design increased machine runng speed and cutting quality , higher cutting efficiency .

XMax. X cutting measure	2400mm(edge cutting) , 2450mm(vertical slice cutting)
XMin. X cutting measure	1050mm(edge cutting) , 40mm(vertical slice cutting)
YMax. Y cutting measure	2500mm(Cross cutting)
YMin. Y cutting measure	800mm(Cross cutting)
Cutting thickness available	3~80mm
Output panel speed	7.5M/min
Slice cut width	160~2500mm
Air pressure	0.4~0.8Mpa
Motor power	2.0KW
Machine weight	1500Kg
Machine size	L3750×W1330×H12365mm

---
