Wholesale Automatic Animal Poultry Cattle Fodder Equipment Plant

Product Description

Wholesale Automatic Animal Poultry Cattle Fodder Equipment Plant
1. Wholesale Automatic Animal Poultry Cattle Fodder Equipment Plant :
1. Widely applied product with mature technology .
2. The main driving adopts high-precision gear drive, so that the output is improved by about 20% when compared with that of belt drive.
3. Imported high-quality bearing and oil seal are adopted to ensure efficient, stable and low-noise whole machine operation . the granulating room is equipped with air suction temperature reducing system .
4. The feeder adopts variable-frequency and variable-speed motor to ensure the quality of discharged particles .
5. Ring dies with multiple kinds of bore diameters are optional . and high-quality craft ring dies are adopted, so that the service life is long. The discharged particles are smooth and the quality is high .
6. International advanced compensation type snakelike spring coupling has the propertied of novel and compact structure, high safety, low noise and low fault rate.
7. Plus-size conditioner and jacket type conditioner are selectable to strength the particle conditioning effect.
2. Wholesale Automatic Animal Poultry Cattle Fodder Equipment Plant Parameter:

Model	SZLH320	SZLH350	SZLH400	SZLH420	SZLH508
Capacity	2-5T/H	1.5-8T/H	2-10T/H	3-12T/H	4-20T/H
Main Motor Power	37KW	55KW	75/90KW	110KW	132/160KW
Screw Feeder Power	0.55KW	0.75KW	0.75KW	1.5KW	1.5KW
Conditioner Power	2.2KW	2.2KW	2.2KW	5.5KW	7.5KW
Ring die inner diameter	320mm	350mm	400mm	420mm	508mm
Ring die rotational speed	305PRM	336PRM	307PRM	287PRM	287PRM
Roller outer diameter	140mm	165mm	190mm	206mm	/
Dimension	2300*1000*2100 mm	3200*1100*1700 mm	3200*1300*1900 mm	3500*1300*2800 mm	3500*1500*2900mm

Pellets diameter: 2mm, 3mm, 4mm, 4.5mm, 5mm, 6mm, 8mm, 10mm
Pellets shaping rate: ≥95%
Pellets stability in water: ≥20Min
Noise: ≤86dB(A) ≤90dB(A)
Roller working temperature: ≤85ºC
Steam working pressure: 0.1-0.4Mpa
Steam temperature: 130-150ºC
3. Wholesale Automatic Animal Poultry Cattle Fodder Equipment Plant More Photos :
Gear Oil Cooling Device
Double Layer Condtioner
Stainless Steel Ring Die
Ring Die Lifting Device

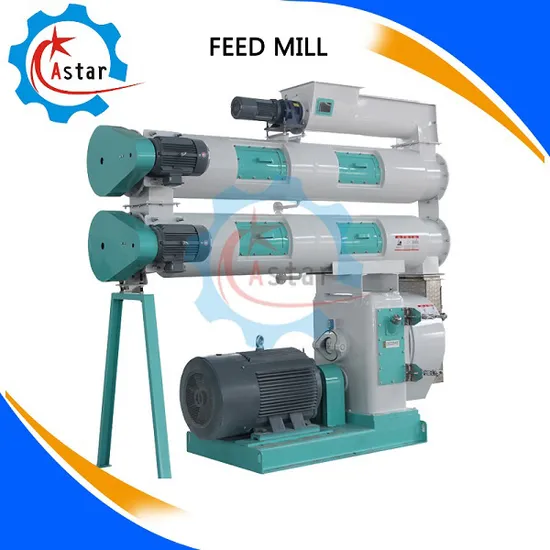

Ring Die Pellet Mill Wit hDouble Layer Condtioner
Any more information you need Wholesale Automatic Animal Poultry Cattle Fodder Equipment Plant , please feel free to contact with us.

Mr. Jason
Chongqing Qiaoxing Machinery & Equipment Company
Website: http://qiaoxingmachinery.en.made-in-china.com
Add: Room 6088, Building 4th, No. 319 of Haier Road in Jiangbei District, Chongqing Municipality, Chongqing, China
Mobile:0086-15178920906

---
