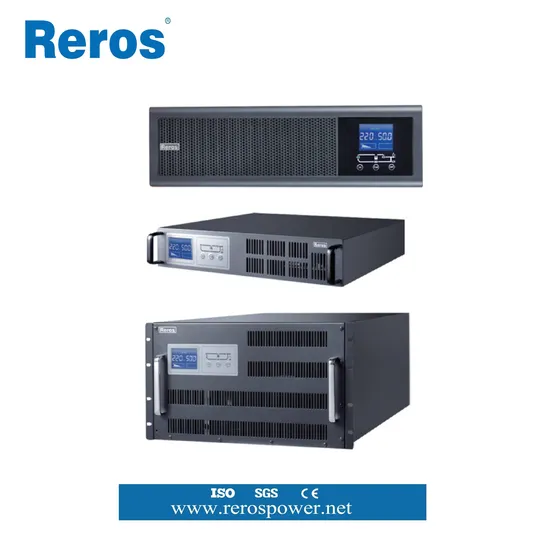

PF1.0 Rack Mount High Frequency RW1-20K Online Transformerless UPS Power Supply

Product Description

Product IntroductionRW series is based on rack-mount UPS, which is ideal for data center, IT device and telecommunication, etc. Compared with lead acid battery, it have many advantages, such as longer cycling lifetime, smaller size, better environmental protection and high reliability. Main feature
1.Full digital control technology
2.Output power factor up to 1.0
3.LCD display panel
4.RS232 communication port
5.Intelligent SNMP+USB+EPO+dry contact (optional)
6.High power density design
7.online double conversion
8.External battery pack,rack kits(optional)
9.ECO function
Application
Data center
Mobile Telecom system
IT device
Precision instrumental
Specifications

Model	RW1K S/L	RW2K S/L	RW3K S/L	RG116K S/L	RG11/3110K S/L		RG11/3115KL	RG11/3120K L
Capacity	1kVA	2kVA	3kVA	6kVA	10kVA		15kVA	20kVA
Input features
Input(Vac)	120~300				120~300(1/1)/266-475(3/1)
Frequency(HZ)	45~66 Automatically select synchronization range according to grid frequency
Phase	Single phase				Single phase /3φ4W+PE
Power factor	Full load≥0.95				Full load≥0.98
Battery voltage(Vdc)	24/36	48/72	72/96	192
Battery type	2*9Ah 12V/Exte rnal	4*9Ah 12V/ External	6*9Ah 12V/External	16*9Ah 12V/External	16*9Ah 12V/External		External
Output features
Power factor	1.0
Voltage(V)	220/230/240±1%
Frequency(HZ)	50/60±0.05%(battery mode)
Transfer time(ms)	0
Efficiency (AC mode @ full loads)	≥92%				≥93%
Waveform	Linear Load THD<3%;Non-linear Load THD<5%
Overload capacity	105%~129% full load keep 60s;130%~150% load keep 30s; Above 150% load keep 300ms					105%-125%,transfer to bypass after 10 mins; 125%-150%, transfer to bypass after 30secs; 30 second, cut off input after 1 min;>150%,transfer to bypass after 0.5 second
Crest factor	>3:1
Others features
DC start	Yes
Backup time	Long backup time, can be extended freely
Charge recovery time	Determined by the extended battery capacity
Communication function	RS232(USB/dry contact are optional)
SNMP(Optional)	Can be network monitored by SNMP adapter
Display	LED display UPS work status, LCD display UPS work parameters
Noise (dB)	<50(within 1 meter)				<55(within 1 meter)
Parallel function	No			Yes(optional)
Alarm	Battery low-voltage, mains abnormal, overload, UPS fault, over temperature protection
Protection	Input over-voltage protection, battery under-voltage protection, overload protection, short circuit protection, over temperature protection
Working temperature(ºC)	0~40
Humidity	0~95%,Non condensing
Size(D×W×H) (mm)	375×440×88(2U)	612×440×88(2U)/375×440×88(2U)		612×440×130(3U)	1/1: 612×440×130(3U)/ 3/1:700×440×130(3U)		660×440×260(6U)
Weight(KG)	14/7	29 /9	33 /10	55 /19	57/21(1/1) 57/22(3/1)		32		38

Note:
Because the products are continuously improved, please contact the company or dealer to inquiry the latest specification.
FAQ
1)What is your minimum order quantity?
A: For common specification, there is no minimum order quantity, and one piece could also be supplied. The difference is just the price and schedule. If your request is some special, we need to calculate it accordingly.
2)Is OEM/ODM available?
A: Yes, it is! Our products can be Customized. We have 5 senior engineers in our R&D Dept.
3)What is the Terms of Payment?
A: T/T, L/C, D/P, D/A, Western Union, Paypal and MoneyGram (for Small-amount payment).
4)Can you offer Form A or Form E or C/O?
A: Yes, it's no problem, we could apply it from our local government.
5)What's the warranty condition for your UPS?
A: 1 year warranty after the shipment of boarding date, and 1% single phase of UPS amount by free Spare Parts shipped together with each order shipment;
6)How is your delivery time?
A: It depends on your order quantity and specification, usually about 7~20days, and it won't cost more than 35days
7)What are the advantages of your company?
A: Reros has about 30 years manufacturing experience, and more than 20 years exporting experience. We promise your quality and service all the time. Adequate inventory, and supply guarantee for the subsequent renewal of supply, providing different solutions.
