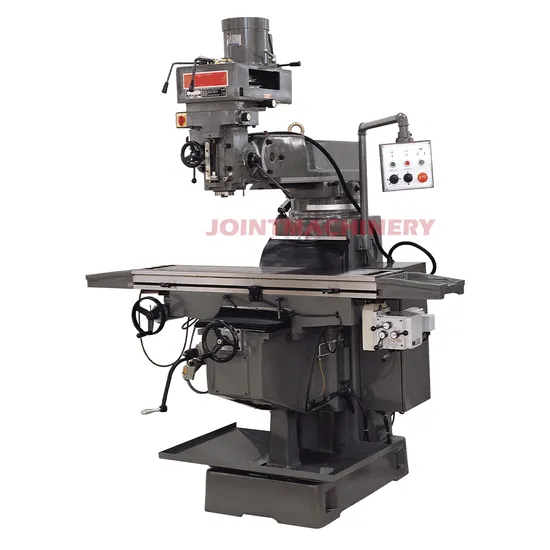

High Rigidity Milling Machine for Mold Components Processing 6va/6vb

Product Description

√ Suitbale for household and daily necessities mold processing.
√ Excellent accessories, strict quality control, long durability.
√ Hard-grinding guide way, thick machine body, effctive casting, the whole machine is durable.
√ Milling head key parts from Taiwan, bearings from Chinese famous brand.
√ High efficiency, strong cutting machine performance.
1. WOKRTABLE Ultra-audio quenching, precision grinding and scraping guide. Rotary table is optional.
2. TURRET MILLING HEAD Turret milling head can swivel 45° (forward-backward), rotate 90° (left-right). Easy to mill at special angle.
3. SPINDLE High precision R8/NT30/NT40 spindle, spindle runout:0.003mm
4. X/Y/Z AUTO FEED X/Y axis auto feed, Z axis electric lifting, improve machining efficiency.
5. DRO Based on customer needs, optional 2-axis DRO or 3-axis DRO.

Turret Milling Machine Vertical Type with NT40 Spindle 5HP Motor

Item		Unit	6VA	6VB
Table size		mm	1370*330*99	1470*305*90
Travel	Longitude(X)	mm	850	1000
	Crossward(Y)	mm	390	390
	Vertical(Z)	mm	450	450
Travel of spindle quill		mm	150	150
Max diatance from the spindle nose to table		mm	570	570
Spindle	Rotation speed (Step speed milling head)	50HZ rpm	58-3000	58-3000
	Rotation speed (Step speed milling head)	60HZ rpm	70-3600	70-3600
	Taper	-	NT40	NT40
	Rated power	HP	5HP	5HP
Tilt angle	Forward and Backward	°	±45°	±45°
	Left and Right	°	±90°	±90°
Dimension		mm	1600*2000*2450	1600*2000*2450
Net weight		kg	2000	2100

Shenzhen Joint Machinery Co., Ltd. Is a professional manufacturer and exporter of CNC lathe machine, CNC deep hole drilling machines, and Swiss-type automatic lathes, milling machine, grinding machine, etc. We are committed to providing high-quality machines and excellent service to our global customers. We prioritize the control and improvement of machine quality to ensure that our products meet the highest industry standards. Our machines incorporate core technologies from Taiwan and Germany, combined with state-of-the-art production equipment and processes, to deliver superior product quality and reliability. Our machines are known for their outstanding performance in terms of precision, stability, and dependability, capable of meeting various complex and high-demand machining requirements. Our products are exported to countries worldwide and have gained wide recognition and popularity among customers. Our market presence covers Asia, Europe, South America, North America, and more. We have established long-term partnerships with customers from various countries and regions, creating significant business value together.

Q1: Are you trading company or manufacturer?A1: We are factory.Q2: What is your terms of payments?A2: 30% as deposit, 70% should be paid before delivery.
Q3: How can I choose the most suitable machines?A3: Please tell us your requirements of the machines, or you could send us the products drawing, our engineer can help to choose suitable model for you.Q4: What is the package? Is it suitable for shipment?A4: Machine will be packed by exporting standard package, water proof and anti-rust. It is very much strong for oversea transportation.Q5: How long is the warranty for machines?A5: Warranty time is 12 months. We will supply the repair parts in this warranty time. The charge of repair parts will be free due to its quality problemin this guarantee.

---
